Nose extensions
- Torque range: 300 – 4.600 Nm
Nose extensions
was designed with flexibility in mind for all hard to reach applications. The separate nose extension has a paddle welded onto the end of the nose extension.

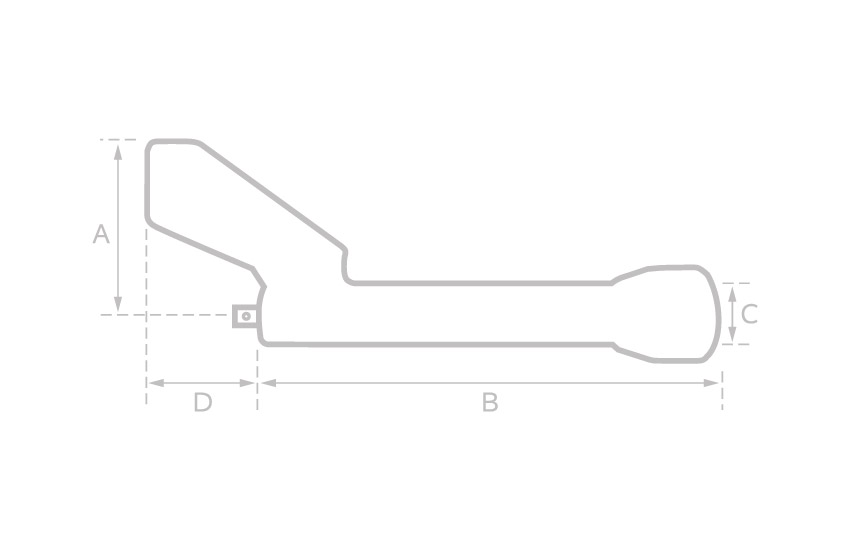

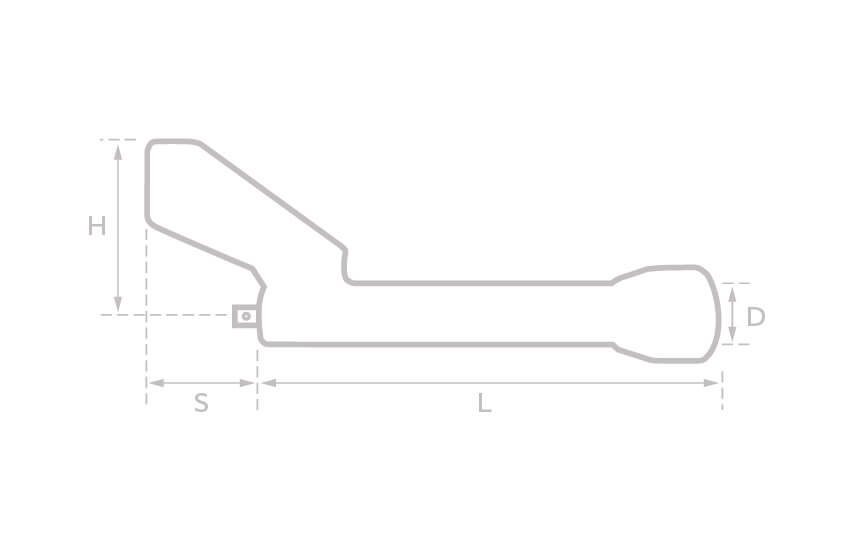

Product overview
| {"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod.", "lang-da": "Prod.nr.", "lang-tr": "Ürün no."} | {"lang-en": "Suitable for", "lang-nl": "Geschikt voor", "lang-de": "Geeignet für", "lang-it": "Adatto a", "lang-es": "Apta para", "lang-fr": "Convient pour", "lang-da": "velegnet til", "lang-tr": "Uygunluk"} | {"lang-en": "Dim. H", "lang-nl": "Afm. H", "lang-de": "Maße H", "lang-it": "Dim. H", "lang-es": "Dim. H", "lang-fr": "Dim. H", "lang-da": "Dim. H", "lang-tr": "Boyut H"} | {"lang-en": "Dim. L", "lang-nl": "Afm. L", "lang-de": "Maße L", "lang-it": "Dim. L", "lang-es": "Dim. L", "lang-fr": "Dim. L", "lang-da": "Dim. L", "lang-tr": "Boyut L"} | {"lang-en": "Dim. D", "lang-nl": "Afm. D", "lang-de": "Maße D", "lang-it": "Dim. D", "lang-es": "Dim. D", "lang-fr": "Dim. D", "lang-da": "Dim. D", "lang-tr": "Boyut D"} | {"lang-en": "Dim. S", "lang-nl": "Afm. S", "lang-de": "Maße S", "lang-it": "Dim. S", "lang-es": "Dim. S", "lang-fr": "Dim. S", "lang-da": "Dim. S", "lang-tr": "Boyut S "} | {"lang-en": "Paddle reaction arm", "lang-nl": "Paddel Reactiearm", "lang-de": "Paddel reaktionsarm", "lang-it": "Pagaia braccio di reazione", "lang-es": "Paleta prazo de reacción", "lang-fr": "Pagayer bras de réaction", "lang-da": "Padle reaktionsarm", "lang-tr": "Kanatlı dayama kolu"} | {"lang-en": "Standard reaction arm", "lang-nl": "Standaard reactiearm", "lang-de": "Standard reaktionsarm", "lang-it": "Standard Braccio di reazione", "lang-es": "Estándar Brazo de reacción", "lang-fr": "Standard bras de réaction", "lang-da": "Standard reaktionsarm", "lang-tr": "Standart dayama kolu"} |
|---|---|---|---|---|---|---|---|
| 14195 | 14 GX | n/a | 324 mm | 44 mm | n/a | 13512 | 11842 |
| 14200 | 14 GX | n/a | 400 mm | 44 mm | n/a | 13512 | 11842 |
| 14205 | 14 GX | n/a | 476 mm | 44 mm | n/a | 13512 | 11842 |
| 18185 | 20 DX | n/a | 349 mm | 51 mm | n/a | 20153 | 19772 |
| 19058 | 20 DX | n/a | 400 mm | 51 mm | n/a | 20153 | 19772 |
| 19059 | 20 DX | n/a | 476 mm | 51 mm | n/a | 20153 | 19772 |
| 12096 | 34 GX | 127 mm | 330 mm | 51 mm | 83 mm | Fixed | n/a |
| 12061 | 34 GX | 127 mm | 406 mm | 51 mm | 83 mm | Fixed | n/a |
| 12097 | 34 GX | 127 mm | 470 mm | 51 mm | 83 mm | Fixed | n/a |
| 27641 | 40 DX | n/a | 305 mm | 51 mm | n/a | 13484 | 13515 |
| 27643 | 40 DX | n/a | 381 mm | 51 mm | n/a | 13484 | 13515 |
| 27651 | 40 DX | n/a | 457 mm | 51 mm | n/a | 13484 | 13515 |
| 11750 | 46 GX | 142 mm | 318 mm | 51 mm | 86 mm | Fixed | n/a |
| 11751 | 46 GX | 142 mm | 394 mm | 51 mm | 86 mm | Fixed | n/a |
| 11752 | 46 GX | 142 mm | 470 mm | 51 mm | 86 mm | Fixed | n/a |
*Tilt screen for optimal image
| {“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”, “lang-da”: “Prod.nr.”, “lang-tr”: “Ürün no.”} | {“lang-en”: “Suitable for”, “lang-nl”: “Geschikt voor”, “lang-de”: “Geeignet für”, “lang-it”: “Adatto a”, “lang-es”: “Apta para”, “lang-fr”: “Convient pour”, “lang-da”: “velegnet til”, “lang-tr”: “Uygunluk”} | {“lang-en”: “Dim. H”, “lang-nl”: “Afm. H”, “lang-de”: “Maße H”, “lang-it”: “Dim. H”, “lang-es”: “Dim. H”, “lang-fr”: “Dim. H”, “lang-da”: “Dim. H”, “lang-tr”: “Boyut H”} | {“lang-en”: “Dim. L”, “lang-nl”: “Afm. L”, “lang-de”: “Maße L”, “lang-it”: “Dim. L”, “lang-es”: “Dim. L”, “lang-fr”: “Dim. L”, “lang-da”: “Dim. L”, “lang-tr”: “Boyut L”} | {“lang-en”: “Dim. D”, “lang-nl”: “Afm. D”, “lang-de”: “Maße D”, “lang-it”: “Dim. D”, “lang-es”: “Dim. D”, “lang-fr”: “Dim. D”, “lang-da”: “Dim. D”, “lang-tr”: “Boyut D”} | {“lang-en”: “Dim. S”, “lang-nl”: “Afm. S”, “lang-de”: “Maße S”, “lang-it”: “Dim. S”, “lang-es”: “Dim. S”, “lang-fr”: “Dim. S”, “lang-da”: “Dim. S”, “lang-tr”: “Boyut S “} | {“lang-en”: “Paddle reaction arm”, “lang-nl”: “Paddel Reactiearm”, “lang-de”: “Paddel reaktionsarm”, “lang-it”: “Pagaia braccio di reazione”, “lang-es”: “Paleta prazo de reacción”, “lang-fr”: “Pagayer bras de réaction”, “lang-da”: “Padle reaktionsarm”, “lang-tr”: “Kanatlı dayama kolu”} | {“lang-en”: “Standard reaction arm”, “lang-nl”: “Standaard reactiearm”, “lang-de”: “Standard reaktionsarm”, “lang-it”: “Standard Braccio di reazione”, “lang-es”: “Estándar Brazo de reacción”, “lang-fr”: “Standard bras de réaction”, “lang-da”: “Standard reaktionsarm”, “lang-tr”: “Standart dayama kolu”} |
|---|---|---|---|---|---|---|---|
| 14195 | 14 GX | n/a | 324 mm | 44 mm | n/a | 13512 | 11842 |
| 14200 | 14 GX | n/a | 400 mm | 44 mm | n/a | 13512 | 11842 |
| 14205 | 14 GX | n/a | 476 mm | 44 mm | n/a | 13512 | 11842 |
| 18185 | 20 DX | n/a | 349 mm | 51 mm | n/a | 20153 | 19772 |
| 19058 | 20 DX | n/a | 400 mm | 51 mm | n/a | 20153 | 19772 |
| 19059 | 20 DX | n/a | 476 mm | 51 mm | n/a | 20153 | 19772 |
| 12096 | 34 GX | 127 mm | 330 mm | 51 mm | 83 mm | Fixed | n/a |
| 12061 | 34 GX | 127 mm | 406 mm | 51 mm | 83 mm | Fixed | n/a |
| 12097 | 34 GX | 127 mm | 470 mm | 51 mm | 83 mm | Fixed | n/a |
| 27641 | 40 DX | n/a | 305 mm | 51 mm | n/a | 13484 | 13515 |
| 27643 | 40 DX | n/a | 381 mm | 51 mm | n/a | 13484 | 13515 |
| 27651 | 40 DX | n/a | 457 mm | 51 mm | n/a | 13484 | 13515 |
| 11750 | 46 GX | 142 mm | 318 mm | 51 mm | 86 mm | Fixed | n/a |
| 11751 | 46 GX | 142 mm | 394 mm | 51 mm | 86 mm | Fixed | n/a |
| 11752 | 46 GX | 142 mm | 470 mm | 51 mm | 86 mm | Fixed | n/a |
