Offset multipliers

For applications where the torque wrench is not applicable due to height constraints, the Offset multipliers provide the solution.

The Offset multipliers are available in three versions: CT Offset multiplier, CX Offset multiplier, and HX Offset multiplier.

Offset ringsleutels

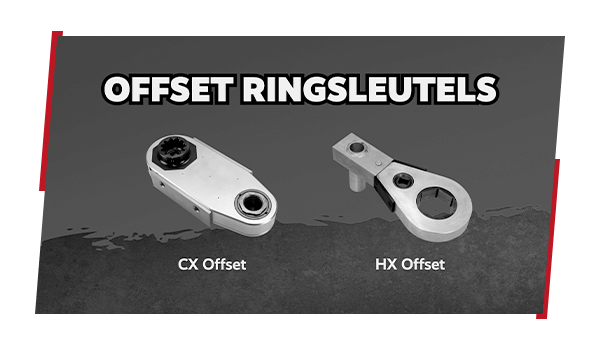

Play Video about Offset ringsleutels

CT Offset multiplier

RTT Exclusive
  • Max torque: 10.000 Nm

The RTT CT Offset multipliers seamlessly blends the precision and power of hydraulic torque wrenches with the speed and convenience of battery, pneumatic or electric multiplier tools.

This unique combination delivers exceptional versatility, making it ideal for a wide range of bolting applications where limited bolt access poses a challenge.

With its low-profile design, the CT Offset mulitplier offers the same level of bolt access as traditional hydraulic wrenches.

Thanks to the CT’s 1:3 ratio, only a lightweight and compact RAD torque wrench is required.

CT Offset Gearbox

The order process for the CT Offset multiplier consists of 2 steps.

Step 1: Choose the type of CT Offset multiplier.

Step 2: Choose a hex reducer to make the CT Offset multiplier applicable for different bolt sizes.

Main advantages

  • Compatible with RAD battery, pneumatic, or electric wrenches
  • Hassle-free operation: No pumps, hoses, hydraulic oil, or high-pressure
  • Speed: Significantly faster than hydraulic torque wrenches
  • Durable and reliable: Built to withstand demanding industrial environments
  • Same thin nose radius as hydraulic wrenches
  • Very little maintenance required

Key features

  • Available in three models for max 2.000 Nm, 4.000 Nm and 10.000 Nm
  • Metric Hex sizes 27-110 MM
  • Built in reaction arm
  • Include release lever pawl
  • Can be operated from top or bottom side
  • Including lifting eye and handle

CT Offset multipliers include:

  • CT Offset multiplier
  • Handle
  • Lifting eye
  • User manual
  • Weatherproof storage case
Handle CT Offset
CT Offset

1. Choose multiplier

CT2 – Suitable for B-RAD SELECT 275 & 700, RAD 275 & 475 SL

{"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod."}{"lang-en": "Model", "lang-nl": "Model", "lang-de": "Modell", "lang-it": "Modello", "lang-es": "Modelo", "lang-fr": "Modèle"}{"lang-en": "Hex size", "lang-nl": "Sleutelwijdte maat", "lang-de": "Sechskantschlüsselweite", "lang-it": "Dimensione esagonale", "lang-es": "Tamaño hex", "lang-fr": "Dimension hexagonale"}{"lang-en": "Hex type", "lang-nl": "Sleutelwijdte type", "lang-de": "Sechskantschlüsseltyp", "lang-it": "Tipo esagonale", "lang-es": "Tipo hex", "lang-fr": "Type hexagonal"}{"lang-en": "Ratio", "lang-nl": "Ratio", "lang-de": "Verhältnis", "lang-it": "Rapporto", "lang-es": "Ratio", "lang-fr": "Rapport"}{"lang-en": "Max input", "lang-nl": "Max invoer", "lang-de": "Max Eingang", "lang-it": "Max input", "lang-es": "Max input", "lang-fr": "Sortie max"}{"lang-en": "Max output", "lang-nl": "Max uitvoer", "lang-de": "Max Ausgang", "lang-it": "Max output", "lang-es": "Max output", "lang-fr": "Entrée max"}{"lang-en": "Weight", "lang-nl": "Gewicht", "lang-de": "Gewicht", "lang-it": "Peso", "lang-es": "Peso", "lang-fr": "Poids"}{"lang-en": "Dim. L", "lang-nl": "Afm. L", "lang-de": "Maße L", "lang-it": "Dim. L", "lang-es": "Dim. L", "lang-fr": "Dim. L"}{"lang-en": "Dim. D", "lang-nl": "Afm. D", "lang-de": "Maße D", "lang-it": "Dim. D", "lang-es": "Dim. D", "lang-fr": "Dim. D"}{"lang-en": "Dim. W", "lang-nl": "Afm. W", "lang-de": "Maße W", "lang-it": "Dim. W", "lang-es": "Dim. W", "lang-fr": "Dim. W"}{"lang-en": "Dim. H", "lang-nl": "Afm. H", "lang-de": "Maße H", "lang-it": "Dim. H", "lang-es": "Dim. H", "lang-fr": "Dim. H"}{"lang-en": "Dim. C", "lang-nl": "Afm. C", "lang-de": "Maße C", "lang-it": "Dim. C", "lang-es": "Dim. C", "lang-fr": "Dim. C"}{"lang-en": "Dim. T", "lang-nl": "Afm. T", "lang-de": "Maße T", "lang-it": "Dim. T", "lang-es": "Dim. T", "lang-fr": "Dim. T"}
🠋 201320CT227 mm6PT1:3670 Nm2.000 Nm2,6 Kg118682918111710
🠋 201321CT230 mm6PT1:3670 Nm2.000 Nm2,6 Kg138682918111711
🠋 201322CT232 mm6PT1:3670 Nm2.000 Nm2,6 Kg138682918111710
🠋 201323CT236 mm6PT1:3670 Nm2.000 Nm2,7 Kg159682918111710
🠋 201324CT241 mm6PT1:3670 Nm2.000 Nm2,7 Kg180682918111710
🠋 201325CT246 mm6PT1:3670 Nm2.000 Nm2,7 Kg200682918111710
🠋 201326CT250 mm6PT1:3670 Nm2.000 Nm2,8 Kg221682918111710
🠋 201327CT255 mm6PT1:3670 Nm2.000 Nm2,8 Kg242682918111710
🠋 201328CT260 mm6PT1:3670 Nm2.000 Nm2,8 Kg263682918111710

*Tilt screen for optimal image

{“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”}{“lang-en”: “Model”, “lang-nl”: “Model”, “lang-de”: “Modell”, “lang-it”: “Modello”, “lang-es”: “Modelo”, “lang-fr”: “Modèle”}{“lang-en”: “Hex size”, “lang-nl”: “Sleutelwijdte maat”, “lang-de”: “Sechskantschlüsselweite”, “lang-it”: “Dimensione esagonale”, “lang-es”: “Tamaño hex”, “lang-fr”: “Dimension hexagonale”}{“lang-en”: “Hex type”, “lang-nl”: “Sleutelwijdte type”, “lang-de”: “Sechskantschlüsseltyp”, “lang-it”: “Tipo esagonale”, “lang-es”: “Tipo hex”, “lang-fr”: “Type hexagonal”}{“lang-en”: “Ratio”, “lang-nl”: “Ratio”, “lang-de”: “Verhältnis”, “lang-it”: “Rapporto”, “lang-es”: “Ratio”, “lang-fr”: “Rapport”}{“lang-en”: “Max input”, “lang-nl”: “Max invoer”, “lang-de”: “Max Eingang”, “lang-it”: “Max input”, “lang-es”: “Max input”, “lang-fr”: “Sortie max”}{“lang-en”: “Max output”, “lang-nl”: “Max uitvoer”, “lang-de”: “Max Ausgang”, “lang-it”: “Max output”, “lang-es”: “Max output”, “lang-fr”: “Entrée max”}{“lang-en”: “Weight”, “lang-nl”: “Gewicht”, “lang-de”: “Gewicht”, “lang-it”: “Peso”, “lang-es”: “Peso”, “lang-fr”: “Poids”}{“lang-en”: “Dim. L”, “lang-nl”: “Afm. L”, “lang-de”: “Maße L”, “lang-it”: “Dim. L”, “lang-es”: “Dim. L”, “lang-fr”: “Dim. L”}{“lang-en”: “Dim. D”, “lang-nl”: “Afm. D”, “lang-de”: “Maße D”, “lang-it”: “Dim. D”, “lang-es”: “Dim. D”, “lang-fr”: “Dim. D”}{“lang-en”: “Dim. W”, “lang-nl”: “Afm. W”, “lang-de”: “Maße W”, “lang-it”: “Dim. W”, “lang-es”: “Dim. W”, “lang-fr”: “Dim. W”}{“lang-en”: “Dim. H”, “lang-nl”: “Afm. H”, “lang-de”: “Maße H”, “lang-it”: “Dim. H”, “lang-es”: “Dim. H”, “lang-fr”: “Dim. H”}{“lang-en”: “Dim. C”, “lang-nl”: “Afm. C”, “lang-de”: “Maße C”, “lang-it”: “Dim. C”, “lang-es”: “Dim. C”, “lang-fr”: “Dim. C”}{“lang-en”: “Dim. T”, “lang-nl”: “Afm. T”, “lang-de”: “Maße T”, “lang-it”: “Dim. T”, “lang-es”: “Dim. T”, “lang-fr”: “Dim. T”}
🠋 201320CT227 mm6PT1:3670 Nm2.000 Nm2,6 Kg118682918111710
🠋 201321CT230 mm6PT1:3670 Nm2.000 Nm2,6 Kg138682918111711
🠋 201322CT232 mm6PT1:3670 Nm2.000 Nm2,6 Kg138682918111710
🠋 201323CT236 mm6PT1:3670 Nm2.000 Nm2,7 Kg159682918111710
🠋 201324CT241 mm6PT1:3670 Nm2.000 Nm2,7 Kg180682918111710
🠋 201325CT246 mm6PT1:3670 Nm2.000 Nm2,7 Kg200682918111710
🠋 201326CT250 mm6PT1:3670 Nm2.000 Nm2,8 Kg221682918111710
🠋 201327CT255 mm6PT1:3670 Nm2.000 Nm2,8 Kg242682918111710
🠋 201328CT260 mm6PT1:3670 Nm2.000 Nm2,8 Kg263682918111710

CT4 – Suitable for B-RAD SELECT 700 & 1400, V-RAD SELECT 1400, RAD 14 GX

{"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod."}{"lang-en": "Model", "lang-nl": "Model", "lang-de": "Modell", "lang-it": "Modello", "lang-es": "Modelo", "lang-fr": "Modèle"}{"lang-en": "Hex size", "lang-nl": "Sleutelwijdte maat", "lang-de": "Sechskantschlüsselweite", "lang-it": "Dimensione esagonale", "lang-es": "Tamaño hex", "lang-fr": "Dimension hexagonale"}{"lang-en": "Hex type", "lang-nl": "Sleutelwijdte type", "lang-de": "Sechskantschlüsseltyp", "lang-it": "Tipo esagonale", "lang-es": "Tipo hex", "lang-fr": "Type hexagonal"}{"lang-en": "Ratio", "lang-nl": "Ratio", "lang-de": "Verhältnis", "lang-it": "Rapporto", "lang-es": "Ratio", "lang-fr": "Rapport"}{"lang-en": "Max input", "lang-nl": "Max invoer", "lang-de": "Max Eingang", "lang-it": "Max input", "lang-es": "Max input", "lang-fr": "Sortie max"}{"lang-en": "Max output", "lang-nl": "Max uitvoer", "lang-de": "Max Ausgang", "lang-it": "Max output", "lang-es": "Max output", "lang-fr": "Entrée max"}{"lang-en": "Weight", "lang-nl": "Gewicht", "lang-de": "Gewicht", "lang-it": "Peso", "lang-es": "Peso", "lang-fr": "Poids"}{"lang-en": "Dim. L", "lang-nl": "Afm. L", "lang-de": "Maße L", "lang-it": "Dim. L", "lang-es": "Dim. L", "lang-fr": "Dim. L"}{"lang-en": "Dim. D", "lang-nl": "Afm. D", "lang-de": "Maße D", "lang-it": "Dim. D", "lang-es": "Dim. D", "lang-fr": "Dim. D"}{"lang-en": "Dim. W", "lang-nl": "Afm. W", "lang-de": "Maße W", "lang-it": "Dim. W", "lang-es": "Dim. W", "lang-fr": "Dim. W"}{"lang-en": "Dim. H", "lang-nl": "Afm. H", "lang-de": "Maße H", "lang-it": "Dim. H", "lang-es": "Dim. H", "lang-fr": "Dim. H"}{"lang-en": "Dim. C", "lang-nl": "Afm. C", "lang-de": "Maße C", "lang-it": "Dim. C", "lang-es": "Dim. C", "lang-fr": "Dim. C"}{"lang-en": "Dim. T", "lang-nl": "Afm. T", "lang-de": "Maße T", "lang-it": "Dim. T", "lang-es": "Dim. T", "lang-fr": "Dim. T"}
🠋 201360CT446 mm6PT1:31.330 Nm4.000 Nm5,8 Kg204803824215613
🠋 201361CT450 mm6PT1:31.330 Nm4.000 Nm5,8 Kg226803824215613
🠋 201362CT455 mm6PT1:31.330 Nm4.000 Nm5,9 Kg247803824215613
🠋 201363CT460 mm6PT1:31.330 Nm4.000 Nm5,9 Kg268803824215613
🠋 201364CT465 mm6PT1:31.330 Nm4.000 Nm6,0 Kg289803824215613
🠋 201365CT470 mm6PT1:31.330 Nm4.000 Nm6,0 Kg310803824215613
🠋 201366CT475 mm6PT1:31.330 Nm4.000 Nm6,1 Kg331803824215613

*Tilt screen for optimal image

{“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”}{“lang-en”: “Model”, “lang-nl”: “Model”, “lang-de”: “Modell”, “lang-it”: “Modello”, “lang-es”: “Modelo”, “lang-fr”: “Modèle”}{“lang-en”: “Hex size”, “lang-nl”: “Sleutelwijdte maat”, “lang-de”: “Sechskantschlüsselweite”, “lang-it”: “Dimensione esagonale”, “lang-es”: “Tamaño hex”, “lang-fr”: “Dimension hexagonale”}{“lang-en”: “Hex type”, “lang-nl”: “Sleutelwijdte type”, “lang-de”: “Sechskantschlüsseltyp”, “lang-it”: “Tipo esagonale”, “lang-es”: “Tipo hex”, “lang-fr”: “Type hexagonal”}{“lang-en”: “Ratio”, “lang-nl”: “Ratio”, “lang-de”: “Verhältnis”, “lang-it”: “Rapporto”, “lang-es”: “Ratio”, “lang-fr”: “Rapport”}{“lang-en”: “Max input”, “lang-nl”: “Max invoer”, “lang-de”: “Max Eingang”, “lang-it”: “Max input”, “lang-es”: “Max input”, “lang-fr”: “Sortie max”}{“lang-en”: “Max output”, “lang-nl”: “Max uitvoer”, “lang-de”: “Max Ausgang”, “lang-it”: “Max output”, “lang-es”: “Max output”, “lang-fr”: “Entrée max”}{“lang-en”: “Weight”, “lang-nl”: “Gewicht”, “lang-de”: “Gewicht”, “lang-it”: “Peso”, “lang-es”: “Peso”, “lang-fr”: “Poids”}{“lang-en”: “Dim. L”, “lang-nl”: “Afm. L”, “lang-de”: “Maße L”, “lang-it”: “Dim. L”, “lang-es”: “Dim. L”, “lang-fr”: “Dim. L”}{“lang-en”: “Dim. D”, “lang-nl”: “Afm. D”, “lang-de”: “Maße D”, “lang-it”: “Dim. D”, “lang-es”: “Dim. D”, “lang-fr”: “Dim. D”}{“lang-en”: “Dim. W”, “lang-nl”: “Afm. W”, “lang-de”: “Maße W”, “lang-it”: “Dim. W”, “lang-es”: “Dim. W”, “lang-fr”: “Dim. W”}{“lang-en”: “Dim. H”, “lang-nl”: “Afm. H”, “lang-de”: “Maße H”, “lang-it”: “Dim. H”, “lang-es”: “Dim. H”, “lang-fr”: “Dim. H”}{“lang-en”: “Dim. C”, “lang-nl”: “Afm. C”, “lang-de”: “Maße C”, “lang-it”: “Dim. C”, “lang-es”: “Dim. C”, “lang-fr”: “Dim. C”}{“lang-en”: “Dim. T”, “lang-nl”: “Afm. T”, “lang-de”: “Maße T”, “lang-it”: “Dim. T”, “lang-es”: “Dim. T”, “lang-fr”: “Dim. T”}
🠋 201360CT446 mm6PT1:31.330 Nm4.000 Nm5,8 Kg204803824215613
🠋 201361CT450 mm6PT1:31.330 Nm4.000 Nm5,8 Kg226803824215613
🠋 201362CT455 mm6PT1:31.330 Nm4.000 Nm5,9 Kg247803824215613
🠋 201363CT460 mm6PT1:31.330 Nm4.000 Nm5,9 Kg268803824215613
🠋 201364CT465 mm6PT1:31.330 Nm4.000 Nm6,0 Kg289803824215613
🠋 201365CT470 mm6PT1:31.330 Nm4.000 Nm6,0 Kg310803824215613
🠋 201366CT475 mm6PT1:31.330 Nm4.000 Nm6,1 Kg331803824215613

CT8 – Suitable for B-RAD SELECT 4000, RAD 40 DX, V-RAD SELECT 4000

{"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod."}{"lang-en": "Model", "lang-nl": "Model", "lang-de": "Modell", "lang-it": "Modello", "lang-es": "Modelo", "lang-fr": "Modèle"}{"lang-en": "Hex size", "lang-nl": "Sleutelwijdte maat", "lang-de": "Sechskantschlüsselweite", "lang-it": "Dimensione esagonale", "lang-es": "Tamaño hex", "lang-fr": "Dimension hexagonale"}{"lang-en": "Hex type", "lang-nl": "Sleutelwijdte type", "lang-de": "Sechskantschlüsseltyp", "lang-it": "Tipo esagonale", "lang-es": "Tipo hex", "lang-fr": "Type hexagonal"}{"lang-en": "Ratio", "lang-nl": "Ratio", "lang-de": "Verhältnis", "lang-it": "Rapporto", "lang-es": "Ratio", "lang-fr": "Rapport"}{"lang-en": "Max input", "lang-nl": "Max invoer", "lang-de": "Max Eingang", "lang-it": "Max input", "lang-es": "Max input", "lang-fr": "Sortie max"}{"lang-en": "Max output", "lang-nl": "Max uitvoer", "lang-de": "Max Ausgang", "lang-it": "Max output", "lang-es": "Max output", "lang-fr": "Entrée max"}{"lang-en": "Weight", "lang-nl": "Gewicht", "lang-de": "Gewicht", "lang-it": "Peso", "lang-es": "Peso", "lang-fr": "Poids"}{"lang-en": "Dim. L", "lang-nl": "Afm. L", "lang-de": "Maße L", "lang-it": "Dim. L", "lang-es": "Dim. L", "lang-fr": "Dim. L"}{"lang-en": "Dim. D", "lang-nl": "Afm. D", "lang-de": "Maße D", "lang-it": "Dim. D", "lang-es": "Dim. D", "lang-fr": "Dim. D"}{"lang-en": "Dim. W", "lang-nl": "Afm. W", "lang-de": "Maße W", "lang-it": "Dim. W", "lang-es": "Dim. W", "lang-fr": "Dim. W"}{"lang-en": "Dim. H", "lang-nl": "Afm. H", "lang-de": "Maße H", "lang-it": "Dim. H", "lang-es": "Dim. H", "lang-fr": "Dim. H"}{"lang-en": "Dim. C", "lang-nl": "Afm. C", "lang-de": "Maße C", "lang-it": "Dim. C", "lang-es": "Dim. C", "lang-fr": "Dim. C"}{"lang-en": "Dim. T", "lang-nl": "Afm. T", "lang-de": "Maße T", "lang-it": "Dim. T", "lang-es": "Dim. T", "lang-fr": "Dim. T"}
🠋 201400CT855 mm6PT1:33.330 Nm10.000 Nm12,2 Kg249894832220816
🠋 201401CT860 mm6PT1:33.330 Nm10.000 Nm12,2 Kg270894832220816
🠋 201402CT865 mm6PT1:33.330 Nm10.000 Nm12,2 Kg292894832220816
🠋 201403CT870 mm6PT1:33.330 Nm10.000 Nm12,2 Kg313894832220816
🠋 201404CT875 mm6PT1:33.330 Nm10.000 Nm12,2 Kg334894832220816
🠋 201405CT880 mm6PT1:33.330 Nm10.000 Nm12,3 Kg356894832220816
🠋 201406CT885 mm6PT1:33.330 Nm10.000 Nm12,3 Kg399894832220819
🠋 201407CT890 mm6PT1:33.330 Nm10.000 Nm12,3 Kg399894832220816
🠋 201408CT895 mm6PT1:33.330 Nm10.000 Nm12,3 Kg441894832220819
🠋 201409CT8100 mm6PT1:33.330 Nm10.000 Nm12,3 Kg441894832220816
🠋 201410CT8105 mm6PT1:33.330 Nm10.000 Nm12,4 Kg484894832220819
🠋 201411CT8110 mm6PT1:33.330 Nm10.000 Nm12,4 Kg484894832220816

*Tilt screen for optimal image

{“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”}{“lang-en”: “Model”, “lang-nl”: “Model”, “lang-de”: “Modell”, “lang-it”: “Modello”, “lang-es”: “Modelo”, “lang-fr”: “Modèle”}{“lang-en”: “Hex size”, “lang-nl”: “Sleutelwijdte maat”, “lang-de”: “Sechskantschlüsselweite”, “lang-it”: “Dimensione esagonale”, “lang-es”: “Tamaño hex”, “lang-fr”: “Dimension hexagonale”}{“lang-en”: “Hex type”, “lang-nl”: “Sleutelwijdte type”, “lang-de”: “Sechskantschlüsseltyp”, “lang-it”: “Tipo esagonale”, “lang-es”: “Tipo hex”, “lang-fr”: “Type hexagonal”}{“lang-en”: “Ratio”, “lang-nl”: “Ratio”, “lang-de”: “Verhältnis”, “lang-it”: “Rapporto”, “lang-es”: “Ratio”, “lang-fr”: “Rapport”}{“lang-en”: “Max input”, “lang-nl”: “Max invoer”, “lang-de”: “Max Eingang”, “lang-it”: “Max input”, “lang-es”: “Max input”, “lang-fr”: “Sortie max”}{“lang-en”: “Max output”, “lang-nl”: “Max uitvoer”, “lang-de”: “Max Ausgang”, “lang-it”: “Max output”, “lang-es”: “Max output”, “lang-fr”: “Entrée max”}{“lang-en”: “Weight”, “lang-nl”: “Gewicht”, “lang-de”: “Gewicht”, “lang-it”: “Peso”, “lang-es”: “Peso”, “lang-fr”: “Poids”}{“lang-en”: “Dim. L”, “lang-nl”: “Afm. L”, “lang-de”: “Maße L”, “lang-it”: “Dim. L”, “lang-es”: “Dim. L”, “lang-fr”: “Dim. L”}{“lang-en”: “Dim. D”, “lang-nl”: “Afm. D”, “lang-de”: “Maße D”, “lang-it”: “Dim. D”, “lang-es”: “Dim. D”, “lang-fr”: “Dim. D”}{“lang-en”: “Dim. W”, “lang-nl”: “Afm. W”, “lang-de”: “Maße W”, “lang-it”: “Dim. W”, “lang-es”: “Dim. W”, “lang-fr”: “Dim. W”}{“lang-en”: “Dim. H”, “lang-nl”: “Afm. H”, “lang-de”: “Maße H”, “lang-it”: “Dim. H”, “lang-es”: “Dim. H”, “lang-fr”: “Dim. H”}{“lang-en”: “Dim. C”, “lang-nl”: “Afm. C”, “lang-de”: “Maße C”, “lang-it”: “Dim. C”, “lang-es”: “Dim. C”, “lang-fr”: “Dim. C”}{“lang-en”: “Dim. T”, “lang-nl”: “Afm. T”, “lang-de”: “Maße T”, “lang-it”: “Dim. T”, “lang-es”: “Dim. T”, “lang-fr”: “Dim. T”}
🠋 201400CT855 mm6PT1:33.330 Nm10.000 Nm12,2 Kg249894832220816
🠋 201401CT860 mm6PT1:33.330 Nm10.000 Nm12,2 Kg270894832220816
🠋 201402CT865 mm6PT1:33.330 Nm10.000 Nm12,2 Kg292894832220816
🠋 201403CT870 mm6PT1:33.330 Nm10.000 Nm12,2 Kg313894832220816
🠋 201404CT875 mm6PT1:33.330 Nm10.000 Nm12,2 Kg334894832220816
🠋 201405CT880 mm6PT1:33.330 Nm10.000 Nm12,3 Kg356894832220816
🠋 201406CT885 mm6PT1:33.330 Nm10.000 Nm12,3 Kg399894832220819
🠋 201407CT890 mm6PT1:33.330 Nm10.000 Nm12,3 Kg399894832220816
🠋 201408CT895 mm6PT1:33.330 Nm10.000 Nm12,3 Kg441894832220819
🠋 201409CT8100 mm6PT1:33.330 Nm10.000 Nm12,3 Kg441894832220816
🠋 201410CT8105 mm6PT1:33.330 Nm10.000 Nm12,4 Kg484894832220819
🠋 201411CT8110 mm6PT1:33.330 Nm10.000 Nm12,4 Kg484894832220816

3. Choose Hex reducer (if required)

{"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod.", "lang-da": "Prod.nr.", "lang-tr": "Ürün no."}{"lang-en": "Reducer insert", "lang-nl": "Sleutelwijdte verloopstuk", "lang-de": "Reduziereinsatz", "lang-it": "Inserto riduttore", "lang-es": "Inserto reductor", "lang-fr": "Douille réductrice", "lang-da": "Reduktionsindsats", "lang-tr": "Eki azalt"}{"lang-en": "Hex", "lang-nl": "Sleutelwijdte", "lang-de": "Sechskant", "lang-it": "Esagonale", "lang-es": "Hexagonal", "lang-fr": "Hexagonale", "lang-da": "Sekskantet", "lang-tr": "Altıgen"}
200820Socket 46 mm24 mm
200821Socket 46 mm27 mm
200822Socket 46 mm30 mm
200823Socket 46 mm32 mm
200824Socket 46 mm36 mm
200825Socket 46 mm41 mm
200838Socket 50 mm46 mm
200447Socket 50 mm41 mm
200866Socket 50 mm36 mm
200448Socket 50 mm32 mm
200837Socket 55 mm46 mm
200826Socket 60 mm41 mm
200827Socket 60 mm46 mm
200828Socket 60 mm50 mm
200829Socket 60 mm55 mm
200833Socket 75 mm65 mm
200830Socket 80 mm55 mm
200835Socket 80 mm46 mm
200830Socket 80 mm55 mm
200831Socket 80 mm60 mm
200832Socket 80 mm65 mm
200833Socket 80 mm70 mm
200834Socket 80 mm75 mm
200851Socket 95 mm75 mm
200852Socket 95 mm85 mm

*Tilt screen for optimal image

{“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”, “lang-da”: “Prod.nr.”, “lang-tr”: “Ürün no.”}{“lang-en”: “From”, “lang-nl”: “Van”, “lang-de”: “Von”, “lang-it”: “Da”, “lang-es”: “De”, “lang-fr”: “De”, “lang-da”: “Fra”, “lang-tr”: “Nereden”}{“lang-en”: “To”, “lang-nl”: “Tot”, “lang-de”: “Zu”, “lang-it”: “A”, “lang-es”: “A”, “lang-fr”: “À”, “lang-da”: “Til”, “lang-tr”: “Nereye”}
20044450 mm30 mm
20044350 mm32 mm
20044250 mm36 mm
20044150 mm41 mm
20044050 mm46 mm
20089765 mm36 mm
20090165 mm41 mm
20090265 mm46 mm
20090365 mm50 mm
20090465 mm55 mm
20090565 mm60 mm

CX Offset multiplier

  • Max torque: 5.000 Nm

The RAD CX Offset multiplier can be used with various RAD torque wrenches, thanks to the interchangeable adapter, compatible with both ¾ inch and 1 inch sqaure drives.

The maximum size of the hexagonal cassette is 65 mm, and the maximum torque is 5.000 Nm. Using magnetic hexagon reducers, the CX Offset multiplier can fit smaller bolt sizes, allowing them to be torqued accurately and easily.

The order process for the CX Offset multiplier consists of 3 steps.

Step 1: Choose the type of CX Offset multiplier.

Step 2: Choose the connection of the torque wrench with which the CX Offset multiplier will be used.

Step 3: Choose a hex reducer to make the CX Offset multiplier for different bolt sizes.

CX Offset multipliers include:

  • CX Offset multiplier
  • * Square drive insert 1” to ¾” included (only when ordered with pn: 11537 & 16155)
  • Weatherproof storage case
CX Offset Gearbox Dimension

1. Choose multiplier

{"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod.", "lang-da": "Prod.nr.", "lang-tr": "Ürün no."}{"lang-en": "Model", "lang-nl": "Model", "lang-de": "Modell", "lang-it": "Modello", "lang-es": "Modelo", "lang-fr": "Modèle", "lang-da": "Model", "lang-tr": "Model"}{"lang-en": "Square drive", "lang-nl": "Aandrijfvierkant", "lang-de": "Vierkant-
antrieb", "lang-it": "Azionamento quadrato", "lang-es": "Accionamiento cuadrado", "lang-fr": "Entraînement à section carrée", "lang-da": "Firkantet drev", "lang-tr": "Kare tahrik ucu"}		{"lang-en": "Max output", "lang-nl": "Max uitvoer", "lang-de": "Max Ausgang", "lang-it": "Max output", "lang-es": "Max output", "lang-fr": "Production max", "lang-da": "Max output", "lang-tr": "Maks. giriş"}{"lang-en": "Torque Ratio", "lang-nl": "Ratio Aanhaalmoment", "lang-de": "Drehmoment Verhältnis", "lang-it": "Rapporto di coppia", "lang-es": "Ratio de par", "lang-fr": "Rapport de couple", "lang-da": "Momentforhold", "lang-tr": "Tork oranı"}{"lang-en": "Weight", "lang-nl": "Gewicht", "lang-de": "Gewicht", "lang-it": "Peso", "lang-es": "Peso", "lang-fr": "Poids", "lang-da": "Agirlik", "lang-tr": "Agirlik"}{"lang-en": "Dim. L", "lang-nl": "Afm. L", "lang-de": "Maße L", "lang-it": "Dim. L", "lang-es": "Dim. L", "lang-fr": "Dim. L", "lang-da": "Dim. L", "lang-tr": "Boyut L"}{"lang-en": "Dim. W", "lang-nl": "Afm. W", "lang-de": "Maße W", "lang-it": "Dim. W", "lang-es": "Dim. W", "lang-fr": "Dim. W", "lang-da": "Dim. W", "lang-tr": "Boyut W"}{"lang-en": "Dim. D", "lang-nl": "Afm. D", "lang-de": "Maße D", "lang-it": "Dim. D", "lang-es": "Dim. D", "lang-fr": "Dim. D", "lang-da": "Dim. D", "lang-tr": "Boyut D"}{"lang-en": "Dim. H", "lang-nl": "Afm. H", "lang-de": "Maße H", "lang-it": "Dim. H", "lang-es": "Dim. H", "lang-fr": "Dim. H", "lang-da": "Dim. H", "lang-tr": "Boyut H"}
🠋 27978Hex 50 mm1"3.400 Nm1:16,7 Kg295 mm128 mm41 mm60 mm
🠋 28540Hex 65 mm1"5.000 Nm1:1.4211,6 Kg332 mm145 mm54 mm94 mm

*Tilt screen for optimal image

{“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”, “lang-da”: “Prod.nr.”, “lang-tr”: “Ürün no.”}{“lang-en”: “Model”, “lang-nl”: “Model”, “lang-de”: “Modell”, “lang-it”: “Modello”, “lang-es”: “Modelo”, “lang-fr”: “Modèle”, “lang-da”: “Model”, “lang-tr”: “Model”}{“lang-en”: “Square drive”, “lang-nl”: “Aandrijfvierkant”, “lang-de”: “Vierkant-
antrieb”, “lang-it”: “Azionamento quadrato”, “lang-es”: “Accionamiento cuadrado”, “lang-fr”: “Entraînement à section carrée”, “lang-da”: “Firkantet drev”, “lang-tr”: “Kare tahrik ucu”}		{“lang-en”: “Max output”, “lang-nl”: “Max uitvoer”, “lang-de”: “Max Ausgang”, “lang-it”: “Max output”, “lang-es”: “Max output”, “lang-fr”: “Production max”, “lang-da”: “Max output”, “lang-tr”: “Maks. giriş”}{“lang-en”: “Torque Ratio”, “lang-nl”: “Ratio Aanhaalmoment”, “lang-de”: “Drehmoment Verhältnis”, “lang-it”: “Rapporto di coppia”, “lang-es”: “Ratio de par”, “lang-fr”: “Rapport de couple”, “lang-da”: “Momentforhold”, “lang-tr”: “Tork oranı”}{“lang-en”: “Weight”, “lang-nl”: “Gewicht”, “lang-de”: “Gewicht”, “lang-it”: “Peso”, “lang-es”: “Peso”, “lang-fr”: “Poids”, “lang-da”: “Agirlik”, “lang-tr”: “Agirlik”}{“lang-en”: “Dim. L”, “lang-nl”: “Afm. L”, “lang-de”: “Maße L”, “lang-it”: “Dim. L”, “lang-es”: “Dim. L”, “lang-fr”: “Dim. L”, “lang-da”: “Dim. L”, “lang-tr”: “Boyut L”}{“lang-en”: “Dim. W”, “lang-nl”: “Afm. W”, “lang-de”: “Maße W”, “lang-it”: “Dim. W”, “lang-es”: “Dim. W”, “lang-fr”: “Dim. W”, “lang-da”: “Dim. W”, “lang-tr”: “Boyut W”}{“lang-en”: “Dim. D”, “lang-nl”: “Afm. D”, “lang-de”: “Maße D”, “lang-it”: “Dim. D”, “lang-es”: “Dim. D”, “lang-fr”: “Dim. D”, “lang-da”: “Dim. D”, “lang-tr”: “Boyut D”}{“lang-en”: “Dim. H”, “lang-nl”: “Afm. H”, “lang-de”: “Maße H”, “lang-it”: “Dim. H”, “lang-es”: “Dim. H”, “lang-fr”: “Dim. H”, “lang-da”: “Dim. H”, “lang-tr”: “Boyut H”}
🠋 27978Hex 50 mm1″3.400 Nm1:16,7 Kg295 mm128 mm41 mm60 mm
🠋 28540Hex 65 mm1″5.000 Nm1:1.4211,6 Kg332 mm145 mm54 mm94 mm

2. Choose drive

{"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod.", "lang-da": "Prod.nr.", "lang-tr": "Ürün no."}{"lang-en": "Suitable for", "lang-nl": "Geschikt voor", "lang-de": "Geeignet für", "lang-it": "Adatto a", "lang-es": "Apta para", "lang-fr": "Convient pour", "lang-da": "velegnet til", "lang-tr": "Uygunluk"}CX Offset Gearbox
11537*RAD 100 SL, RAD 275 SL, RAD 475 SL, B-RAD SELECT 275, B-RAD SELECT 475, (M)V-RAD 627978
16155*RAD 10 GX, RAD 14 GX, E-RAD BLU 950, B-RAD SELECT 700(-2), B-RAD SELECT 1400(-2), (M)V-RAD 1427978
26994RAD 20 GX, E-RAD BLU 2000, B-RAD SELECT 950-2, B-RAD SELECT 2000(-2), (M)V-RAD 2027978
13034RAD 34 GX, E-RAD BLU 3400, V-RAD 31, MV-RAD 3427978
27853RAD 40 DX, B-RAD SELECT 4000(-2)27978
28532RAD 34 GX, E-RAD BLU 3400, V-RAD 31, MV-RAD 3428540
28531RAD 40 DX, B-RAD SELECT 4000(-2)28540

*Tilt screen for optimal image

{“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”, “lang-da”: “Prod.nr.”, “lang-tr”: “Ürün no.”}{“lang-en”: “Suitable for”, “lang-nl”: “Geschikt voor”, “lang-de”: “Geeignet für”, “lang-it”: “Adatto a”, “lang-es”: “Apta para”, “lang-fr”: “Convient pour”, “lang-da”: “velegnet til”, “lang-tr”: “Uygunluk”}CX Offset Gearbox
11537*RAD 100 SL, RAD 275 SL, RAD 475 SL, B-RAD SELECT 275, B-RAD SELECT 475, (M)V-RAD 627978
16155*RAD 10 GX, RAD 14 GX, E-RAD BLU 950, B-RAD SELECT 700(-2), B-RAD SELECT 1400(-2), (M)V-RAD 1427978
26994RAD 20 GX, E-RAD BLU 2000, B-RAD SELECT 950-2, B-RAD SELECT 2000(-2), (M)V-RAD 2027978
13034RAD 34 GX, E-RAD BLU 3400, V-RAD 31, MV-RAD 3427978
27853RAD 40 DX, B-RAD SELECT 4000(-2)27978
28532RAD 34 GX, E-RAD BLU 3400, V-RAD 31, MV-RAD 3428540
28531RAD 40 DX, B-RAD SELECT 4000(-2)28540

* Square drive insert 1” to ¾” included

3. Choose Hex reducer (if required)

{"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod.", "lang-da": "Prod.nr.", "lang-tr": "Ürün no."}{"lang-en": "From", "lang-nl": "Van", "lang-de": "Von", "lang-it": "Da", "lang-es": "De", "lang-fr": "De", "lang-da": "Fra", "lang-tr": "Nereden"}{"lang-en": "To", "lang-nl": "Tot", "lang-de": "Zu", "lang-it": "A", "lang-es": "A", "lang-fr": "À", "lang-da": "Til", "lang-tr": "Nereye"}
20044450 mm30 mm
20044350 mm32 mm
20044250 mm36 mm
20044150 mm41 mm
20044050 mm46 mm
20089765 mm36 mm
20090165 mm41 mm
20090265 mm46 mm
20090365 mm50 mm
20090465 mm55 mm
20090565 mm60 mm

*Tilt screen for optimal image

{“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”, “lang-da”: “Prod.nr.”, “lang-tr”: “Ürün no.”}{“lang-en”: “From”, “lang-nl”: “Van”, “lang-de”: “Von”, “lang-it”: “Da”, “lang-es”: “De”, “lang-fr”: “De”, “lang-da”: “Fra”, “lang-tr”: “Nereden”}{“lang-en”: “To”, “lang-nl”: “Tot”, “lang-de”: “Zu”, “lang-it”: “A”, “lang-es”: “A”, “lang-fr”: “À”, “lang-da”: “Til”, “lang-tr”: “Nereye”}
20044450 mm30 mm
20044350 mm32 mm
20044250 mm36 mm
20044150 mm41 mm
20044050 mm46 mm
20089765 mm36 mm
20090165 mm41 mm
20090265 mm46 mm
20090365 mm50 mm
20090465 mm55 mm
20090565 mm60 mm

HX Offset multiplier

  • Max torque: 3.500 Nm

For plate heat exchanger applications, RAD has engineered a special solution: the HX Offset multiplier.

The HX Offset multiplier is designed to work with several types of RAD torque wrenches.

With the HX Offset ring wrench, a plate heat exchanger is assembled many times faster than with a hydraulic torque wrench.

HX Offset Ringsleutel

The order process for the CX Offset multiplier consists of 3 steps.

Step 1: Choose the HX Offset multiplier type.

Step 2: Choose the reaction arm of the torque wrench that will be used with the HX Offset multiplier.

Step 3: Choose a hex reducer to make the HX Offset multiplier applicable for different bolt sizes.

HX Offset multipliers include:

  • HX Offset multiplier
  • Reaction arm
  • Weatherproof storage case
HX Offset Gearbox

1. Choose multiplier

{"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod.", "lang-da": "Prod.nr.", "lang-tr": "Ürün no."}{"lang-en": "Model", "lang-nl": "Model", "lang-de": "Modell", "lang-it": "Modello", "lang-es": "Modelo", "lang-fr": "Modèle", "lang-da": "Model", "lang-tr": "Model"}{"lang-en": "Square drive", "lang-nl": "Aandrijfvierkant", "lang-de": "Vierkant-
antrieb", "lang-it": "Azionamento quadrato", "lang-es": "Accionamiento cuadrado", "lang-fr": "Entraînement à section carrée", "lang-da": "Firkantet drev", "lang-tr": "Kare tahrik ucu"}		{"lang-en": "Max input", "lang-nl": "Max invoer", "lang-de": "Max Eingang", "lang-it": "Input max", "lang-es": "Entrada max", "lang-fr": "Entrée max", "lang-da": "Max input", "lang-tr": "Maks. çıkış"}{"lang-en": "Max output", "lang-nl": "Max uitvoer", "lang-de": "Max Ausgang", "lang-it": "Max output", "lang-es": "Max output", "lang-fr": "Production max", "lang-da": "Max output", "lang-tr": "Maks. giriş"}{"lang-en": "Torque Ratio", "lang-nl": "Ratio Aanhaalmoment", "lang-de": "Drehmoment Verhältnis", "lang-it": "Rapporto di coppia", "lang-es": "Ratio de par", "lang-fr": "Rapport de couple", "lang-da": "Momentforhold", "lang-tr": "Tork oranı"}{"lang-en": "Weight", "lang-nl": "Gewicht", "lang-de": "Gewicht", "lang-it": "Peso", "lang-es": "Peso", "lang-fr": "Poids", "lang-da": "Agirlik", "lang-tr": "Agirlik"}{"lang-en": "Dim. L", "lang-nl": "Afm. L", "lang-de": "Maße L", "lang-it": "Dim. L", "lang-es": "Dim. L", "lang-fr": "Dim. L", "lang-da": "Dim. L", "lang-tr": "Boyut L"}{"lang-en": "Dim. D", "lang-nl": "Afm. D", "lang-de": "Maße D", "lang-it": "Dim. D", "lang-es": "Dim. D", "lang-fr": "Dim. D", "lang-da": "Dim. D", "lang-tr": "Boyut D"}{"lang-en": "Dim. W", "lang-nl": "Afm. W", "lang-de": "Maße W", "lang-it": "Dim. W", "lang-es": "Dim. W", "lang-fr": "Dim. W", "lang-da": "Dim. W", "lang-tr": "Boyut W"}{"lang-en": "Dim. H", "lang-nl": "Afm. H", "lang-de": "Maße H", "lang-it": "Dim. H", "lang-es": "Dim. H", "lang-fr": "Dim. H", "lang-da": "Dim. H", "lang-tr": "Boyut H"}
🠋 2440455 mm¾"1.900 Nm3.500 Nm1:1.866,8 Kg410 mm175 mm42 mm266 mm
🠋 2254165 mm1"1.900 Nm3.500 Nm1:1.866,7 Kg410 mm175 mm42 mm266 mm
🠋 1655080 mm1"1.900 Nm3.500 Nm1:1.866,6 Kg410 mm175 mm42 mm266 mm

*Tilt screen for optimal image

{“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”, “lang-da”: “Prod.nr.”, “lang-tr”: “Ürün no.”}{“lang-en”: “Model”, “lang-nl”: “Model”, “lang-de”: “Modell”, “lang-it”: “Modello”, “lang-es”: “Modelo”, “lang-fr”: “Modèle”, “lang-da”: “Model”, “lang-tr”: “Model”}{“lang-en”: “Square drive”, “lang-nl”: “Aandrijfvierkant”, “lang-de”: “Vierkant-
antrieb”, “lang-it”: “Azionamento quadrato”, “lang-es”: “Accionamiento cuadrado”, “lang-fr”: “Entraînement à section carrée”, “lang-da”: “Firkantet drev”, “lang-tr”: “Kare tahrik ucu”}		{“lang-en”: “Max input”, “lang-nl”: “Max invoer”, “lang-de”: “Max Eingang”, “lang-it”: “Input max”, “lang-es”: “Entrada max”, “lang-fr”: “Entrée max”, “lang-da”: “Max input”, “lang-tr”: “Maks. çıkış”}{“lang-en”: “Max output”, “lang-nl”: “Max uitvoer”, “lang-de”: “Max Ausgang”, “lang-it”: “Max output”, “lang-es”: “Max output”, “lang-fr”: “Production max”, “lang-da”: “Max output”, “lang-tr”: “Maks. giriş”}{“lang-en”: “Torque Ratio”, “lang-nl”: “Ratio Aanhaalmoment”, “lang-de”: “Drehmoment Verhältnis”, “lang-it”: “Rapporto di coppia”, “lang-es”: “Ratio de par”, “lang-fr”: “Rapport de couple”, “lang-da”: “Momentforhold”, “lang-tr”: “Tork oranı”}{“lang-en”: “Weight”, “lang-nl”: “Gewicht”, “lang-de”: “Gewicht”, “lang-it”: “Peso”, “lang-es”: “Peso”, “lang-fr”: “Poids”, “lang-da”: “Agirlik”, “lang-tr”: “Agirlik”}{“lang-en”: “Dim. L”, “lang-nl”: “Afm. L”, “lang-de”: “Maße L”, “lang-it”: “Dim. L”, “lang-es”: “Dim. L”, “lang-fr”: “Dim. L”, “lang-da”: “Dim. L”, “lang-tr”: “Boyut L”}{“lang-en”: “Dim. D”, “lang-nl”: “Afm. D”, “lang-de”: “Maße D”, “lang-it”: “Dim. D”, “lang-es”: “Dim. D”, “lang-fr”: “Dim. D”, “lang-da”: “Dim. D”, “lang-tr”: “Boyut D”}{“lang-en”: “Dim. W”, “lang-nl”: “Afm. W”, “lang-de”: “Maße W”, “lang-it”: “Dim. W”, “lang-es”: “Dim. W”, “lang-fr”: “Dim. W”, “lang-da”: “Dim. W”, “lang-tr”: “Boyut W”}{“lang-en”: “Dim. H”, “lang-nl”: “Afm. H”, “lang-de”: “Maße H”, “lang-it”: “Dim. H”, “lang-es”: “Dim. H”, “lang-fr”: “Dim. H”, “lang-da”: “Dim. H”, “lang-tr”: “Boyut H”}
🠋 2440455 mm¾”1.900 Nm3.500 Nm1:1.866,8 Kg410 mm175 mm42 mm266 mm
🠋 2254165 mm1″1.900 Nm3.500 Nm1:1.866,7 Kg410 mm175 mm42 mm266 mm
🠋 1655080 mm1″1.900 Nm3.500 Nm1:1.866,6 Kg410 mm175 mm42 mm266 mm

2. Choose reaction arm

{"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod.", "lang-da": "Prod.nr.", "lang-tr": "Ürün no."}{"lang-en": "Suitable for", "lang-nl": "Geschikt voor", "lang-de": "Geeignet für", "lang-it": "Adatto a", "lang-es": "Apta para", "lang-fr": "Convient pour", "lang-da": "velegnet til", "lang-tr": "Uygunluk"}HX Offset Gearbox
1692010 GX, 14 GX, (M)V-RAD 14, (M)B-RAD SELECT 700, (M)B-RAD 1400(-2)24404 / 22541 / 16550
23120B-RAD SELECT 950-2, 20 DX, (M)B-RAD 2000(-2)24404 / 22541 / 16550
2461134 GX24404 / 22541 / 16550

*Tilt screen for optimal image

{“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”, “lang-da”: “Prod.nr.”, “lang-tr”: “Ürün no.”}{“lang-en”: “Suitable for”, “lang-nl”: “Geschikt voor”, “lang-de”: “Geeignet für”, “lang-it”: “Adatto a”, “lang-es”: “Apta para”, “lang-fr”: “Convient pour”, “lang-da”: “velegnet til”, “lang-tr”: “Uygunluk”}HX Offset Gearbox
1692010 GX, 14 GX, (M)V-RAD 14, (M)B-RAD SELECT 700, (M)B-RAD 1400(-2)24404 / 22541 / 16550
23120B-RAD SELECT 950-2, 20 DX, (M)B-RAD 2000(-2)24404 / 22541 / 16550
2461134 GX24404 / 22541 / 16550

3. Choose Hex reducer (if required)

{"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod.", "lang-da": "Prod.nr.", "lang-tr": "Ürün no."}{"lang-en": "From", "lang-nl": "Van", "lang-de": "Von", "lang-it": "Da", "lang-es": "De", "lang-fr": "De", "lang-da": "Fra", "lang-tr": "Nereden"}{"lang-en": "To", "lang-nl": "Tot", "lang-de": "Zu", "lang-it": "A", "lang-es": "A", "lang-fr": "À", "lang-da": "Til", "lang-tr": "Nereye"}
20090655 mm36 mm
20083755 mm46 mm
20089765 mm36 mm
20090165 mm41 mm
20090265 mm46 mm
20090365 mm50 mm
20090465 mm55 mm
20090565 mm60 mm
20081980 mm24 mm
20086280 mm30 mm
20086380 mm36 mm
20083580 mm46 mm
20085880 mm50 mm
20083080 mm55 mm
20083180 mm60 mm
20083280 mm65 mm
20085780 mm70 mm
20083480 mm75 mm

*Tilt screen for optimal image

{“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”, “lang-da”: “Prod.nr.”, “lang-tr”: “Ürün no.”}{“lang-en”: “From”, “lang-nl”: “Van”, “lang-de”: “Von”, “lang-it”: “Da”, “lang-es”: “De”, “lang-fr”: “De”, “lang-da”: “Fra”, “lang-tr”: “Nereden”}{“lang-en”: “To”, “lang-nl”: “Tot”, “lang-de”: “Zu”, “lang-it”: “A”, “lang-es”: “A”, “lang-fr”: “À”, “lang-da”: “Til”, “lang-tr”: “Nereye”}
20090655 mm36 mm
20083755 mm46 mm
20089765 mm36 mm
20090165 mm41 mm
20090265 mm46 mm
20090365 mm50 mm
20090465 mm55 mm
20090565 mm60 mm
20081980 mm24 mm
20086280 mm30 mm
20086380 mm36 mm
20083580 mm46 mm
20085880 mm50 mm
20083080 mm55 mm
20083180 mm60 mm
20083280 mm65 mm
20085780 mm70 mm
20083480 mm75 mm

Our other products

TrackWrench®

Digital Manual Wrenches

Prefer to use a manual torque wrench? Check out our digital hand torque wrenches from TrackWrench®.

Our TrackWrench® digital hand torque wrenches provide precision and control for torqueing your workpieces. With an easy-to-operate digital display, you can select the correct torque settings and adjust the wrench to meet the specific requirements of your project.

Modec

Spindle Wrenches

Need to open and close valves? Check out our solutions from Modec for valves. Our torque wrenches are specially designed for this application and guarantee smooth and precise operation. View our products for the right solution for your application.

Offset Ringsleutel

Offset multipliers

Lack of space above the bolt and nut? RAD Torque Systems has a the Offset multipliers for this. Our innovative design provides an efficient solution for securing nuts and bolts in hard to reach places.

Contact

Radial Torque Tools B.V.
Zuidergracht 17
3763 LS Soest
The Netherlands

Our brands

Radial Torque Tools B.V.

Links

© All rights reserved
Radial Torque Tools B.V.
