Torque wrenches tighten bolted connections and torque them to keep the structural parts firmly pressed together. To ensure that the torque wrench applies the correct torque, it must be calibrated. This page describes the different calibration devices of Radial Torque.
The RAD calibration systems are accurate calibration benches used worldwide. The accuracy and repeatability of the RAD calibration systems have an excellent reputation in calibration laboratories. The RAD calibration system is specially designed for calibrating RAD (and similar) torque wrenches. It is also possible to calibrate hydraulic torque wrenches.
Why do torque wrenches require calibration?
During calibration, the intended torque of the torque wrench is assessed in comparison to the actual torque it applies. Calibrating torque wrenches is crucial to ensure that bolts and nuts are tightened with the desired amount of torque. Utilizing a calibration device allows a torque wrench to be adjusted to produce accurate torque values, making it suitable for tasks that demand precision bolting.
Small Calibration System
- Torque range: 100 – 9.500 Nm
The RAD Small Calibration System is available in two sizes of which the longer model can be equipped with two transducer sizes depending on the required torque. The calibration values can be read directly from the transducer screen. In addition, the calibration values can be read and stored by connecting the RAD transducer to the supplied tablet using the RAD calibration software.
The RAD calibration system consists of a steel base plate, the transducer, the simulation bolt connection, impact sockets and a tablet with associated (pre-installed) RAD calibration software.
RAD Small Calibration Systems include:
- RAD Transducer
- Tube Style bench
- Simulation joint
- Impact Sockets
- Pre-installed Windows laptop
- ISO 17025 accredited calibration certificate
- Torque range up to 9.500 Nm
- Fully traceable calibration system, with recognized ISO 17025 calibration certificate
- Screen on transducer makes it easy to read calibration value
- Up to 2,050 Nm classified up to BS 7882:2008 as Class 1 or better for primary torque range (+/- 0.5% of the reading from 20% to 100% of the full scale)
- From 1,900 Nm to 9,500 Nm classified up to BS 7882:2008 as Class 0.5 or better for primary torque range (+/- 0.25% of the reading from 20% to 100% of the full scale)
Large Calibration System
- Torque range: 2.440 – 24.400 Nm
The Large Calibration System is paired with a 16K or 24K Smart Socket™, and features a rundown fixture designed and produced to accurately calibrate multiplier torque tools.
The calibration values can be read directly from the RAD Smart Socket screen. In addition, the calibration values can be read and stored by linking the RAD Smart Socket to the optional pre-installed Windows tablet using the RAD calibration software.
This fully traceable calibration system, with recognized ISO 17025 certification, is engineered for strength and durability by RAD Torque in Canada.
RAD Large Calibration Systems include:
- RAD Smart Socket™ 100 mm / 24.400 Nm
- Tube Style bench
- Simulation joint
- Optional: Pre-installed Windows laptop
- ISO 17025 accredited calibration certificate
- Torque range up to 24.400 Nm
- Fully traceable calibration system, with recognized ISO 17025 calibration certificate
- Screen on Smart Socket™ makes it easy to read calibration value
Product overview

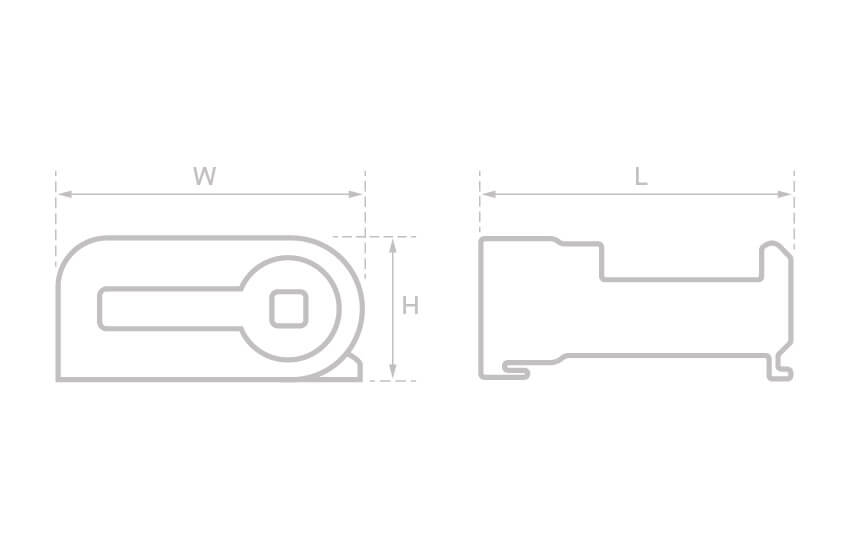

| {"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod.", "lang-da": "Prod.nr.", "lang-tr": "Ürün no."} | {"lang-en": "Model", "lang-nl": "Model", "lang-de": "Modell", "lang-it": "Modello", "lang-es": "Modelo", "lang-fr": "Modèle", "lang-da": "Model", "lang-tr": "Model"} | {"lang-en": "Drive size", "lang-nl": "Aandrijf maat", "lang-de": "Antriebsgröße", "lang-it": "Dimensioni dell'azionamento", "lang-es": "Tamaño de accionamiento", "lang-fr": "Taille de l'entraînement", "lang-da": "Drevstørrelse", "lang-tr": "Sürücü boyutu"} | {"lang-en": "Torque range", "lang-nl": "Momentbereik", "lang-de": "Drehmoment- bereich", "lang-it": "Range di coppia", "lang-es": "Rango de par", "lang-fr": "Plage de couple", "lang-da": "Momentområde", "lang-tr": "Tork araligi"} | {"lang-en": "Weight", "lang-nl": "Gewicht", "lang-de": "Gewicht", "lang-it": "Peso", "lang-es": "Peso", "lang-fr": "Poids", "lang-da": "Agirlik", "lang-tr": "Agirlik"} | {"lang-en": "Dim. L", "lang-nl": "Afm. L", "lang-de": "Maße L", "lang-it": "Dim. L", "lang-es": "Dim. L", "lang-fr": "Dim. L", "lang-da": "Dim. L", "lang-tr": "Boyut L"} | {"lang-en": "Dim. H", "lang-nl": "Afm. H", "lang-de": "Maße H", "lang-it": "Dim. H", "lang-es": "Dim. H", "lang-fr": "Dim. H", "lang-da": "Dim. H", "lang-tr": "Boyut H"} | {"lang-en": "Dim. W", "lang-nl": "Afm. W", "lang-de": "Maße W", "lang-it": "Dim. W", "lang-es": "Dim. W", "lang-fr": "Dim. W", "lang-da": "Dim. W", "lang-tr": "Boyut W"} |
|---|---|---|---|---|---|---|---|
| 23442 | RAD 1500/2000 Small Calibration System | 1" | 100 - 2.000 Nm | 13,6 Kg | 247 mm | 138 mm | 281 mm |
| 23443 | RAD 3500/4750 Small Calibration System | 1" | 250 - 4.750 Nm | 28,9 Kg | 368 mm | 177 mm | 332 mm |
| 23444 | RAD 7000/9500 Small Calibration System | 1½" | 475 - 9.500 Nm | 29,3 Kg | 368 mm | 177 mm | 332 mm |

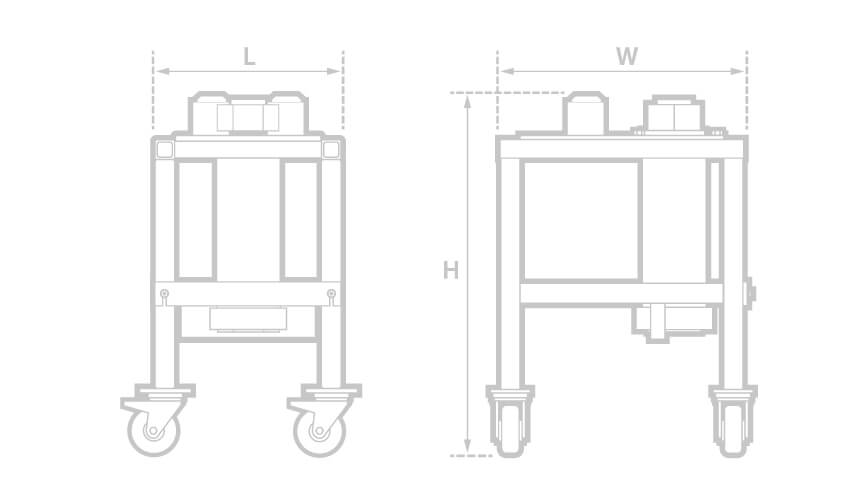

| 🠋 30526 | RAD 12K/16K large Calibration System | 1½" | 1.620 - 16.200 Nm | 106,5 Kg | 383 mm | 270 mm | 501 mm |
| 🠋 33736 | RAD 18K/24K large Calibration System | 2½" | 2.440 - 24.400 Nm | 105,5 Kg | 383 mm | 270 mm | 501 mm |
*Tilt screen for optimal image
| {“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”, “lang-da”: “Prod.nr.”, “lang-tr”: “Ürün no.”} | {“lang-en”: “Model”, “lang-nl”: “Model”, “lang-de”: “Modell”, “lang-it”: “Modello”, “lang-es”: “Modelo”, “lang-fr”: “Modèle”, “lang-da”: “Model”, “lang-tr”: “Model”} | {“lang-en”: “Drive size”, “lang-nl”: “Aandrijf maat”, “lang-de”: “Antriebsgröße”, “lang-it”: “Dimensioni dell’azionamento”, “lang-es”: “Tamaño de accionamiento”, “lang-fr”: “Taille de l’entraînement”, “lang-da”: “Drevstørrelse”, “lang-tr”: “Sürücü boyutu”} | {“lang-en”: “Torque range”, “lang-nl”: “Momentbereik”, “lang-de”: “Drehmoment- bereich”, “lang-it”: “Range di coppia”, “lang-es”: “Rango de par”, “lang-fr”: “Plage de couple”, “lang-da”: “Momentområde”, “lang-tr”: “Tork araligi”} | {“lang-en”: “Weight”, “lang-nl”: “Gewicht”, “lang-de”: “Gewicht”, “lang-it”: “Peso”, “lang-es”: “Peso”, “lang-fr”: “Poids”, “lang-da”: “Agirlik”, “lang-tr”: “Agirlik”} | {“lang-en”: “Dim. L”, “lang-nl”: “Afm. L”, “lang-de”: “Maße L”, “lang-it”: “Dim. L”, “lang-es”: “Dim. L”, “lang-fr”: “Dim. L”, “lang-da”: “Dim. L”, “lang-tr”: “Boyut L”} | {“lang-en”: “Dim. H”, “lang-nl”: “Afm. H”, “lang-de”: “Maße H”, “lang-it”: “Dim. H”, “lang-es”: “Dim. H”, “lang-fr”: “Dim. H”, “lang-da”: “Dim. H”, “lang-tr”: “Boyut H”} | {“lang-en”: “Dim. W”, “lang-nl”: “Afm. W”, “lang-de”: “Maße W”, “lang-it”: “Dim. W”, “lang-es”: “Dim. W”, “lang-fr”: “Dim. W”, “lang-da”: “Dim. W”, “lang-tr”: “Boyut W”} |
|---|---|---|---|---|---|---|---|
| 23442 | RAD 1500/2000 Small Calibration System | 1″ | 100 – 2.000 Nm | 13,6 Kg | 247 mm | 138 mm | 281 mm |
| 23443 | RAD 3500/4750 Small Calibration System | 1″ | 250 – 4.750 Nm | 28,9 Kg | 368 mm | 177 mm | 332 mm |
| 23444 | RAD 7000/9500 Small Calibration System | 1½” | 475 – 9.500 Nm | 29,3 Kg | 368 mm | 177 mm | 332 mm |
| 🠋 30526 | RAD 12K/16K large Calibration System | 1½” | 1.620 – 16.200 Nm | 106,5 Kg | 383 mm | 270 mm | 501 mm |
| 🠋 33736 | RAD 18K/24K large Calibration System | 2½” | 2.440 – 24.400 Nm | 105,5 Kg | 383 mm | 270 mm | 501 mm |
Non-impacting
According to European standards
Lithium Ion battery
Bluetooth connectivity
Software data exchange
Joint Stand
- Maximum torque: 6.500 Nm
The Joint Stand to check torque wrenches with the RAD Smart Sockets™ (up to and including 60 mm) has a maximum capacity of 6,500 Nm. The set consists of: The set consists of:
- Bench
- Simulation joint
- Washers
Not suitable for the calibration of torque wrenches. For calibration, see the calibration benches.
| {"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod.", "lang-da": "Prod.nr.", "lang-tr": "Ürün no."} | {"lang-en": "Model", "lang-nl": "Model", "lang-de": "Modell", "lang-it": "Modello", "lang-es": "Modelo", "lang-fr": "Modèle", "lang-da": "Model", "lang-tr": "Model"} | {"lang-en": "Max torque", "lang-nl": "Max aanhaalmoment", "lang-de": "Drehmomentkapazität", "lang-it": "Capacità di coppia", "lang-es": "Capacidad de par de apriete", "lang-fr": "Capacité de couple", "lang-da": "Maks. moment", "lang-tr": "Maks. tork"} |
|---|---|---|
| 19342 | Joint Stand | 6.500 Nm |
