E-RAD BLU Electric Series

  • Torque range: 135 – 16.500 Nm

E-RAD BLU series precision torque wrench tools are designed to provide a high accuracy for high torque assembly applications.

This advanced pistol-grip electric torque wrench combines the patented RAD gear system with AC servo motor technology to make bolt-torque performance an average of 8 times faster than comparable hydraulic wrenches. Build and designed for heavy duty industrial usage.

Non-impacting

Safe & Reliable

According to European standards

Bluetooth connectivity

Software data exchange

Torque + angle function

E-RAD BLU torque wrench features:

  • Multiple models wrenches can be used in combination with one controller. Reducing cost when multiple wrench sizes are needed
  • Bluetooth connectivity with RAD Smart Socket™ for transducer verified bolt connection calibration
  • Field calibration
  • Control box with 50 X 76 mm touchscreen
  • Advanced data collection operator identification
  • Life cycle and maintenance counters
  • Multi-user level password protection
  • Standard with variable torque and angle control
  • LED indicator lights (Pass/Fail) – Located on both sides, these visual signals indicate the status of torque procedure for maximum accuracy
  • Controlled bolting – repeatability of +/- 2%
  • Extremely low noise level – only 75 dB

One Control Box - Complete Torque Range!

The E-RAD BLU Series Touch Controlbox provides the interface for all E-RAD BLU torque wrenches. Whichever E-RAD is connected, the control box recognizes the model and calibration data of the tools. This allows the user to switch between multiple key tools and ensure error-free operation. Unlike conventional systems, no conversion tables are required for the tightening torque, the tightening torque is set directly on the control box.

E-RAD Controlbox

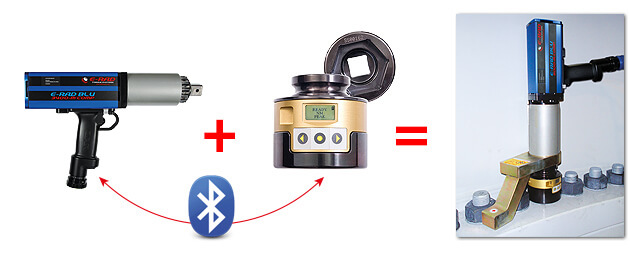

The ultimate combination: E-RAD BLU & Smart Socket™

The E-RAD BLU series torque wrenches support Bluetooth allowing it to be used in conjunction with the RAD Smart Socket™ for tightening verification. In this way, the E-RAD can be calibrated specifically on different bolt connections as the E-RAD BLU communicates with the Smart Socket™. (Note: the RAD Smart Socket™ is not included and can be ordered separately if desired).

All E-RAD tools include:

  • Reaction arm and retaining ring
  • Weatherproof storage case
  • Control box cable
  • Digital control box
  • USB port
  • Data logging software
  • User manual
  • Calibration certificate

Optional

E-RAD BLU

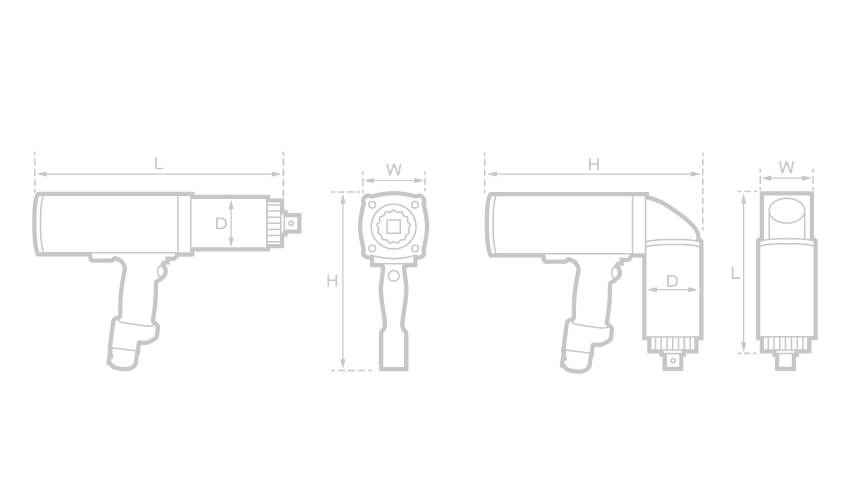

How to order E-RAD BLU

1. Select toolkit based on required maximum torque capacity

{"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod.", "lang-da": "Prod.nr.", "lang-tr": "Ürün no."}{"lang-en": "Model", "lang-nl": "Model", "lang-de": "Modell", "lang-it": "Modello", "lang-es": "Modelo", "lang-fr": "Modèle", "lang-da": "Model", "lang-tr": "Model"}{"lang-en": "Square drive", "lang-nl": "Aandrijfvierkant", "lang-de": "Vierkant-
antrieb", "lang-it": "Azionamento quadrato", "lang-es": "Accionamiento cuadrado", "lang-fr": "Entraînement à section carrée", "lang-da": "Firkantet drev", "lang-tr": "Kare tahrik ucu"}		{"lang-en": "Torque range", "lang-nl": "Momentbereik", "lang-de": "Drehmoment-
bereich", "lang-it": "Range di coppia", "lang-es": "Rango de par", "lang-fr": "Plage de couple", "lang-da": "Momentområde", "lang-tr": "Tork araligi"}		{"lang-en": "RPM", "lang-nl": "TPM", "lang-de": "Drehzahl", "lang-it": "GIRI/MIN", "lang-es": "RPM", "lang-fr": "t/min", "lang-da": "O/M", "lang-tr": "Devir/Dak"}{"lang-en": "Weight", "lang-nl": "Gewicht", "lang-de": "Gewicht", "lang-it": "Peso", "lang-es": "Peso", "lang-fr": "Poids", "lang-da": "Agirlik", "lang-tr": "Agirlik"}{"lang-en": "Dim. L", "lang-nl": "Afm. L", "lang-de": "Maße L", "lang-it": "Dim. L", "lang-es": "Dim. L", "lang-fr": "Dim. L", "lang-da": "Dim. L", "lang-tr": "Boyut L"}{"lang-en": "Dim. D", "lang-nl": "Afm. D", "lang-de": "Maße D", "lang-it": "Dim. D", "lang-es": "Dim. D", "lang-fr": "Dim. D", "lang-da": "Dim. D", "lang-tr": "Boyut D"}{"lang-en": "Dim. W", "lang-nl": "Afm. W", "lang-de": "Maße W", "lang-it": "Dim. W", "lang-es": "Dim. W", "lang-fr": "Dim. W", "lang-da": "Dim. W", "lang-tr": "Boyut W"}{"lang-en": "Dim. H", "lang-nl": "Afm. H", "lang-de": "Maße H", "lang-it": "Dim. H", "lang-es": "Dim. H", "lang-fr": "Dim. H", "lang-da": "Dim. H", "lang-tr": "Boyut H"}
🠋 21985E-RAD BLU 950¾"135 - 950 Nm30,05,5 Kg340 mm65 mm78 mm275 mm
🠋 24162E-RAD BLU 20001"270 - 2.000 Nm16,05,9 Kg337 mm69 mm78 mm275 mm
🠋 21986E-RAD BLU 34001"340 - 3.400 Nm10,07,6 Kg380 mm76 mm78 mm275 mm
🠋 22434E-RAD BLU 3400-90°1"340 - 3.400 Nm12,08,3 Kg210 mm76 mm78 mm300 mm
🠋 21987E-RAD BLU 40001"675 - 4.000 Nm8,511,0 Kg430 mm86 mm88 mm287 mm
🠋 200415E-RAD BLU 40001½”675 - 4.500 Nm8,511,0 Kg430 mm86 mm88 mm287 mm
🠋 21988E-RAD BLU 80001½”1.350 - 8.000 Nm4,513,5 Kg430 mm100 mm100 mm295 mm
🠋 21989E-RAD BLU 10K1½”2.000 - 10.000 Nm3,015,0 Kg430 mm105 mm105 mm297 mm
🠋 24224E-RAD BLU 15K1½”4.000 - 15.000 Nm2,320,0 Kg465 mm127 mm127 mm306 mm
🠋 25307E-RAD BLU 15K2½”4.000 - 16.500 Nm2,320,1 Kg465 mm127 mm127 mm306 mm

*Tilt screen for optimal image

{“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”, “lang-da”: “Prod.nr.”, “lang-tr”: “Ürün no.”}{“lang-en”: “Model”, “lang-nl”: “Model”, “lang-de”: “Modell”, “lang-it”: “Modello”, “lang-es”: “Modelo”, “lang-fr”: “Modèle”, “lang-da”: “Model”, “lang-tr”: “Model”}{“lang-en”: “Square drive”, “lang-nl”: “Aandrijfvierkant”, “lang-de”: “Vierkant-
antrieb”, “lang-it”: “Azionamento quadrato”, “lang-es”: “Accionamiento cuadrado”, “lang-fr”: “Entraînement à section carrée”, “lang-da”: “Firkantet drev”, “lang-tr”: “Kare tahrik ucu”}		{“lang-en”: “Torque range”, “lang-nl”: “Momentbereik”, “lang-de”: “Drehmoment-
bereich”, “lang-it”: “Range di coppia”, “lang-es”: “Rango de par”, “lang-fr”: “Plage de couple”, “lang-da”: “Momentområde”, “lang-tr”: “Tork araligi”}		{“lang-en”: “RPM”, “lang-nl”: “TPM”, “lang-de”: “Drehzahl”, “lang-it”: “GIRI/MIN”, “lang-es”: “RPM”, “lang-fr”: “t/min”, “lang-da”: “O/M”, “lang-tr”: “Devir/Dak”}{“lang-en”: “Weight”, “lang-nl”: “Gewicht”, “lang-de”: “Gewicht”, “lang-it”: “Peso”, “lang-es”: “Peso”, “lang-fr”: “Poids”, “lang-da”: “Agirlik”, “lang-tr”: “Agirlik”}{“lang-en”: “Dim. L”, “lang-nl”: “Afm. L”, “lang-de”: “Maße L”, “lang-it”: “Dim. L”, “lang-es”: “Dim. L”, “lang-fr”: “Dim. L”, “lang-da”: “Dim. L”, “lang-tr”: “Boyut L”}{“lang-en”: “Dim. D”, “lang-nl”: “Afm. D”, “lang-de”: “Maße D”, “lang-it”: “Dim. D”, “lang-es”: “Dim. D”, “lang-fr”: “Dim. D”, “lang-da”: “Dim. D”, “lang-tr”: “Boyut D”}{“lang-en”: “Dim. W”, “lang-nl”: “Afm. W”, “lang-de”: “Maße W”, “lang-it”: “Dim. W”, “lang-es”: “Dim. W”, “lang-fr”: “Dim. W”, “lang-da”: “Dim. W”, “lang-tr”: “Boyut W”}{“lang-en”: “Dim. H”, “lang-nl”: “Afm. H”, “lang-de”: “Maße H”, “lang-it”: “Dim. H”, “lang-es”: “Dim. H”, “lang-fr”: “Dim. H”, “lang-da”: “Dim. H”, “lang-tr”: “Boyut H”}
🠋 21985E-RAD BLU 950¾”135 – 950 Nm30,05,5 Kg340 mm65 mm78 mm275 mm
🠋 24162E-RAD BLU 20001″270 – 2.000 Nm16,05,9 Kg337 mm69 mm78 mm275 mm
🠋 21986E-RAD BLU 34001″340 – 3.400 Nm10,07,6 Kg380 mm76 mm78 mm275 mm
🠋 22434E-RAD BLU 3400-90°1″340 – 3.400 Nm12,08,3 Kg210 mm76 mm78 mm300 mm
🠋 21987E-RAD BLU 40001″675 – 4.000 Nm8,511,0 Kg430 mm86 mm88 mm287 mm
🠋 200415E-RAD BLU 40001½”675 – 4.500 Nm8,511,0 Kg430 mm86 mm88 mm287 mm
🠋 21988E-RAD BLU 80001½”1.350 – 8.000 Nm4,513,5 Kg430 mm100 mm100 mm295 mm
🠋 21989E-RAD BLU 10K1½”2.000 – 10.000 Nm3,015,0 Kg430 mm105 mm105 mm297 mm
🠋 24224E-RAD BLU 15K1½”4.000 – 15.000 Nm2,320,0 Kg465 mm127 mm127 mm306 mm
🠋 25307E-RAD BLU 15K2½”4.000 – 16.500 Nm2,320,1 Kg465 mm127 mm127 mm306 mm

2. Select controller case voltage

{"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod.", "lang-da": "Prod.nr.", "lang-tr": "Ürün no."}{"lang-en": "Controller", "lang-nl": "Controlbox", "lang-de": "Steuereinheit", "lang-it": "Toolkit", "lang-es": "Controlador", "lang-fr": "Contrôle", "lang-da": "Styreenhed", "lang-tr": "Kontrol kutusu"}{"lang-en": "Weight", "lang-nl": "Gewicht", "lang-de": "Gewicht", "lang-it": "Peso", "lang-es": "Peso", "lang-fr": "Poids", "lang-da": "Agirlik", "lang-tr": "Ağırlık"}
21220E-RAD BLU 230V Pelican5,5 Kg
21221E-RAD BLU 120V Pelican5,5 Kg

*Tilt screen for optimal image

{“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”, “lang-da”: “Prod.nr.”, “lang-tr”: “Ürün no.”}{“lang-en”: “Controller”, “lang-nl”: “Controlbox”, “lang-de”: “Steuereinheit”, “lang-it”: “Toolkit”, “lang-es”: “Controlador”, “lang-fr”: “Contrôle”, “lang-da”: “Styreenhed”, “lang-tr”: “Kontrol kutusu”}{“lang-en”: “Weight”, “lang-nl”: “Gewicht”, “lang-de”: “Gewicht”, “lang-it”: “Peso”, “lang-es”: “Peso”, “lang-fr”: “Poids”, “lang-da”: “Agirlik”, “lang-tr”: “Ağırlık”}
21220E-RAD BLU 230V Pelican5,5 Kg
21221E-RAD BLU 120V Pelican5,5 Kg

3. Select tool cable length

{"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod.", "lang-da": "Prod.nr.", "lang-tr": "Ürün no."}{"lang-en": "Cable length", "lang-nl": "Kabellengte", "lang-de": "Kabellänge", "lang-it": "Lunghezza del cavo", "lang-es": "Longitud del cable", "lang-fr": "Longueur de câble", "lang-da": "kabellængde", "lang-tr": "Kablo uzunluğu"}
21217{"lang-en": "4,6 m (Included with standard tool kit)", "lang-nl": "4,6 m (Included with standard tool kit)", "lang-de": "4,6 m (Im Standard-Werkzeugsatz enthalten)", "lang-it": "4,6 m (Included with standard tool kit)", "lang-es": "4,6 m (Included with standard tool kit)", "lang-fr": "4,6 m (Included with standard tool kit)", "lang-da": "4,6 m (Included with standard tool kit)", "lang-tr": "4,6 m (Included with standard tool kit)"}
212186,1 m
212197,6 m

*Tilt screen for optimal image

{“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”, “lang-da”: “Prod.nr.”, “lang-tr”: “Ürün no.”}{“lang-en”: “Cable length”, “lang-nl”: “Kabellengte”, “lang-de”: “Kabellänge”, “lang-it”: “Lunghezza del cavo”, “lang-es”: “Longitud del cable”, “lang-fr”: “Longueur de câble”, “lang-da”: “kabellængde”, “lang-tr”: “Kablo uzunluğu”}
21217{“lang-en”: “4,6 m (Included with standard tool kit)”, “lang-nl”: “4,6 m (Included with standard tool kit)”, “lang-de”: “4,6 m (Im Standard-Werkzeugsatz enthalten)”, “lang-it”: “4,6 m (Included with standard tool kit)”, “lang-es”: “4,6 m (Included with standard tool kit)”, “lang-fr”: “4,6 m (Included with standard tool kit)”, “lang-da”: “4,6 m (Included with standard tool kit)”, “lang-tr”: “4,6 m (Included with standard tool kit)”}
212186,1 m
212197,6 m
4. Select additional wrenches*
{"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod.", "lang-da": "Prod.nr.", "lang-tr": "Ürün no."}{"lang-en": "Toolkit", "lang-nl": "Momentsleutelkit", "lang-de": "Toolkit", "lang-it": "Toolkit", "lang-es": "Toolkit", "lang-fr": "Kit d'outil", "lang-da": "værktøjets", "lang-tr": "Alet setini"}{"lang-en": "Square drive", "lang-nl": "Aandrijfvierkant", "lang-de": "Vierkant-
antrieb", "lang-it": "Azionamento quadrato", "lang-es": "Accionamiento cuadrado", "lang-fr": "Entraînement à section carrée", "lang-da": "Firkantet drev", "lang-tr": "Kare tahrik ucu"}		{"lang-en": "Torque range", "lang-nl": "Momentbereik", "lang-de": "Drehmoment-
bereich", "lang-it": "Range di coppia", "lang-es": "Rango de par", "lang-fr": "Plage de couple", "lang-da": "Momentområde", "lang-tr": "Tork araligi"}		{"lang-en": "RPM", "lang-nl": "TPM", "lang-de": "Drehzahl", "lang-it": "GIRI/MIN", "lang-es": "RPM", "lang-fr": "t/min", "lang-da": "O/M", "lang-tr": "Devir/Dak"}
22056E-RAD BLU 950¾"135 - 950 Nm30
23330E-RAD BLU 20001"270 - 2.000 Nm9
22057E-RAD BLU 34001"340 - 3.400 Nm10
23113E-RAD BLU 3400-90°1"340 - 3.400 Nm11
22058E-RAD BLU 40001"675 - 4.050 Nm8
200416E-RAD BLU 40001½”675 - 4.500 Nm8
22059E-RAD BLU 80001½”1.385 - 8.100 Nm4
31439E-RAD BLU 8000-90°1½”1.385 - 8.100 Nm4
22060E-RAD BLU 10K1½”2.034 - 10.000 Nm2
23748E-RAD BLU 15K1½”4.050 - 15.000 Nm2
31449E-RAD BLU 15K-90°1½”4.050 - 15.000 Nm2
25360E-RAD BLU 15K2½”4.050 - 16.500 Nm2

*Tilt screen for optimal image

{“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”, “lang-da”: “Prod.nr.”, “lang-tr”: “Ürün no.”}{“lang-en”: “Toolkit”, “lang-nl”: “Momentsleutelkit”, “lang-de”: “Toolkit”, “lang-it”: “Toolkit”, “lang-es”: “Toolkit”, “lang-fr”: “Kit d’outil”, “lang-da”: “værktøjets”, “lang-tr”: “Alet setini”}{“lang-en”: “Square drive”, “lang-nl”: “Aandrijfvierkant”, “lang-de”: “Vierkant-
antrieb”, “lang-it”: “Azionamento quadrato”, “lang-es”: “Accionamiento cuadrado”, “lang-fr”: “Entraînement à section carrée”, “lang-da”: “Firkantet drev”, “lang-tr”: “Kare tahrik ucu”}		{“lang-en”: “Torque range”, “lang-nl”: “Momentbereik”, “lang-de”: “Drehmoment-
bereich”, “lang-it”: “Range di coppia”, “lang-es”: “Rango de par”, “lang-fr”: “Plage de couple”, “lang-da”: “Momentområde”, “lang-tr”: “Tork araligi”}		{“lang-en”: “RPM”, “lang-nl”: “TPM”, “lang-de”: “Drehzahl”, “lang-it”: “GIRI/MIN”, “lang-es”: “RPM”, “lang-fr”: “t/min”, “lang-da”: “O/M”, “lang-tr”: “Devir/Dak”}
22056E-RAD BLU 950¾”135 – 950 Nm30
23330E-RAD BLU 20001″270 – 2.000 Nm9
22057E-RAD BLU 34001″340 – 3.400 Nm10
23113E-RAD BLU 3400-90°1″340 – 3.400 Nm11
22058E-RAD BLU 40001″675 – 4.050 Nm8
200416E-RAD BLU 40001½”675 – 4.500 Nm8
22059E-RAD BLU 80001½”1.385 – 8.100 Nm4
31439E-RAD BLU 8000-90°1½”1.385 – 8.100 Nm4
22060E-RAD BLU 10K1½”2.034 – 10.000 Nm2
23748E-RAD BLU 15K1½”4.050 – 15.000 Nm2
31449E-RAD BLU 15K-90°1½”4.050 – 15.000 Nm2
25360E-RAD BLU 15K2½”4.050 – 16.500 Nm2

* Please note that this is a wrench only including the reaction arm, weatherproof case and a calibration certificate.

5. Select additional cables

{"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod.", "lang-da": "Prod.nr.", "lang-tr": "Ürün no."}{"lang-en": "Separate cable", "lang-nl": "Kabellengte", "lang-de": "Zusätzliche Kabel", "lang-it": "Cavi aggiuntivi", "lang-es": "Cables adicionales", "lang-fr": "Clés supplémentaires", "lang-da": "Særskilt kabel", "lang-tr": "Ayrı kablo"}
212144,6 m
212156,1 m
212167,6 m

*Tilt screen for optimal image

{“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”, “lang-da”: “Prod.nr.”, “lang-tr”: “Ürün no.”}{“lang-en”: “Separate cable”, “lang-nl”: “Kabellengte”, “lang-de”: “Zusätzliche Kabel”, “lang-it”: “Cavi aggiuntivi”, “lang-es”: “Cables adicionales”, “lang-fr”: “Clés supplémentaires”, “lang-da”: “Særskilt kabel”, “lang-tr”: “Ayrı kablo”}
212144,6 m
212156,1 m
212167,6 m

Optional: Torque Tool Flange Roller

To improve the ease of handling of torque wrenches during the tightening of bolted connections on wind turbine flanges, Radial has developed the “Torque Tool Flange Roller”.

This eliminates the need to lift heavy torque wrenches from bolt to bolt during the installation process, significantly reducing the load and fatigue of the technician when tightening the numerous flange bolts inside the tower. The flange roller is very easy to install inside the wind turbine and greatly reduces the risks of working with high torque tools. The operator’s hands are always safely out of reach of the reaction arm thanks to the two-hand operation and plexiglass shielding.

The Torque Tool Flange Roller can be used with the heavier RAD torque wrenches from the E-RAD BLU and B-RAD X series.

Torque Tool Flange Roller

Optional: E-RAD BLU 90° 8000, 10K and 15K

A large number of torque wrench models from RAD’s product range are available in 90° variants. With the E-RAD series, in addition to the existing E-RAD 3400, this is now also possible for the E-RAD 8000, 10K and 15K models.

In this 90° variant, the torque multiplier is placed on a rotatable 90° elbow joint, allowing the wrench to be used more effectively in tight and hard-to-reach spaces.

In addition, the 90° elbow joint is also available separately, so that several models of E-RAD BLU torque wrenches can be supplied in a 90° variant on request.

E-RAD BLU 8000-90°

Article number: 31390

Additional options:

  • Additional torque wrenches*
  • 120V Controlbox
  • 6,1 and 7,6 meter control box cable
* Additional torque wrenches are supplied with reaction arm, weatherproof storage case and calibration certificate.
