BreakTorq DBW1000
Price: €2.450 – €2.848
- Range: 300 – 1.000 Nm
- SKU DBM1000: 221290

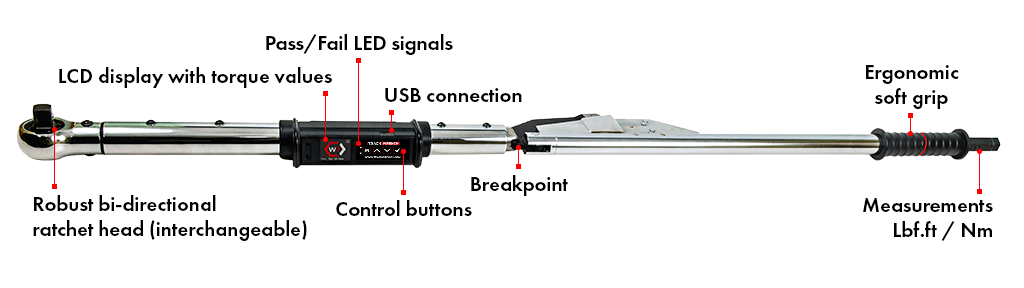

BreakTorq-Series – Break with tradition
- Maximum deviation +/- 1%
- Breaking repeatability +/- 4%
- Record “as found” results
- Capture set torque for full traceability
- Breaking angle of 20°
- Interchangeable ratchet head (24x32)
- Battery life: 180 hrs
- Languages: English, German, French, Spanish, Italian, Russian, Polish, Portuguese, Chinese
- Units: Nm, ozf.in, lbf.in, lbf.ft, kgf.cm, kgf.m
Play Video about BreakTorq-Series
Smart & Easy
Packed with intelligent features. Easy to master.
Light & Durable
Suitable for rugged conditions. Ergonomically designed for industrial use.
Familiar & Advanced
The familiar feel and efficiency of a breaking wrench with the traceability of a digital wrench.
Traceability
Transfer data via USB to PC software or upgrade to one of the wireless options.
Product overview
| {“lang-en”: “Model”, “lang-nl”: “Model”, “lang-de”: “Modell”, “lang-it”: “Modello”, “lang-es”: “Modelo”, “lang-fr”: “Modèle”, “lang-da”: “Model”, “lang-tr”: “Model”} | {“lang-en”: “Digital”, “lang-nl”: “Digitaal”, “lang-de”: “Digital”, “lang-it”: “Digital”, “lang-es”: “Digital”, “lang-fr”: “Digital”, “lang-da”: “Digital”, “lang-tr”: “Digital”} | {“lang-en”: “Torque range”, “lang-nl”: “Momentbereik”, “lang-de”: “Drehmoment- bereich”, “lang-it”: “Range di coppia”, “lang-es”: “Rango de par”, “lang-fr”: “Plage de couple”, “lang-da”: “Momentområde”, “lang-tr”: “Tork araligi”} | {“lang-en”: “Ratchet”, “lang-nl”: “Ratelkop”, “lang-de”: “Ratsche”, “lang-it”: “Cricchetto”, “lang-es”: “Trinquete”, “lang-fr”: “Rochet”, “lang-da”: “Skralde”, “lang-tr”: “Cırcır”} | {“lang-en”: “Adapter”, “lang-nl”: “Adapter”, “lang-de”: “Adapter”, “lang-it”: “Adattatore”, “lang-es”: “Adaptador”, “lang-fr”: “Adaptateur”} | {“lang-en”: “Dim. L”, “lang-nl”: “Afm. L”, “lang-de”: “Maße L”, “lang-it”: “Dim. L”, “lang-es”: “Dim. L”, “lang-fr”: “Dim. L”, “lang-da”: “Dim. L”, “lang-tr”: “Boyut L”} | {“lang-en”: “Weight”, “lang-nl”: “Gewicht”, “lang-de”: “Gewicht”, “lang-it”: “Peso”, “lang-es”: “Peso”, “lang-fr”: “Poids”, “lang-da”: “Agirlik”, “lang-tr”: “Agirlik”} |
|---|---|---|---|---|---|---|
| DBW1000 | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} | 300-1.000 Nm | 1″ | 24×32 | 1370 mm | 8,8 Kg |
*Tilt screen for optimal image
| {“lang-en”: “Model”, “lang-nl”: “Model”, “lang-de”: “Modell”, “lang-it”: “Modello”, “lang-es”: “Modelo”, “lang-fr”: “Modèle”, “lang-da”: “Model”, “lang-tr”: “Model”} | {“lang-en”: “Digital”, “lang-nl”: “Digitaal”, “lang-de”: “Digital”, “lang-it”: “Digital”, “lang-es”: “Digital”, “lang-fr”: “Digital”, “lang-da”: “Digital”, “lang-tr”: “Digital”} | {“lang-en”: “Torque range”, “lang-nl”: “Momentbereik”, “lang-de”: “Drehmoment- bereich”, “lang-it”: “Range di coppia”, “lang-es”: “Rango de par”, “lang-fr”: “Plage de couple”, “lang-da”: “Momentområde”, “lang-tr”: “Tork araligi”} | {“lang-en”: “Ratchet”, “lang-nl”: “Ratelkop”, “lang-de”: “Ratsche”, “lang-it”: “Cricchetto”, “lang-es”: “Trinquete”, “lang-fr”: “Rochet”, “lang-da”: “Skralde”, “lang-tr”: “Cırcır”} | {“lang-en”: “Adapter”, “lang-nl”: “Adapter”, “lang-de”: “Adapter”, “lang-it”: “Adattatore”, “lang-es”: “Adaptador”, “lang-fr”: “Adaptateur”} | {“lang-en”: “Dim. L”, “lang-nl”: “Afm. L”, “lang-de”: “Maße L”, “lang-it”: “Dim. L”, “lang-es”: “Dim. L”, “lang-fr”: “Dim. L”, “lang-da”: “Dim. L”, “lang-tr”: “Boyut L”} | {“lang-en”: “Weight”, “lang-nl”: “Gewicht”, “lang-de”: “Gewicht”, “lang-it”: “Peso”, “lang-es”: “Peso”, “lang-fr”: “Poids”, “lang-da”: “Agirlik”, “lang-tr”: “Agirlik”} |
|---|---|---|---|---|---|---|
| DBW1000 | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} | 300-1.000 Nm | 1″ | 24×32 | 1370 mm | 8,8 Kg |
Features
| {“lang-en”: “Features”, “lang-nl”: “Functies”, “lang-de”: “Features”, “lang-it”: “Features”, “lang-es”: “Features”, “lang-fr”: “Features”, “lang-da”: “Features”, “lang-tr”: “Features”} | {“lang-en”: “Digital”, “lang-nl”: “Digitaal”, “lang-de”: “Digital”, “lang-it”: “Digital”, “lang-es”: “Digital”, “lang-fr”: “Digital”, “lang-da”: “Digital”, “lang-tr”: “Digital”} |
|---|---|
| {“lang-en”: “Track”, “lang-nl”: “Track (torque tracking met aanhaalmoment weergave)”, “lang-de”: “Track”, “lang-it”: “Track”, “lang-es”: “Track”, “lang-fr”: “Track”, “lang-da”: “Track”, “lang-tr”: “Track”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} |
| {“lang-en”: “Peak”, “lang-nl”: “Aanhaalmoment Piekwaarde”, “lang-de”: “Peak”, “lang-it”: “Peak”, “lang-es”: “Peak”, “lang-fr”: “Peak”, “lang-da”: “Peak”, “lang-tr”: “Peak”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} |
| {“lang-en”: “Presets”, “lang-nl”: “Voorkeuze instelling”, “lang-de”: “Presets”, “lang-it”: “Presets”, “lang-es”: “Presets”, “lang-fr”: “Presets”, “lang-da”: “Presets”, “lang-tr”: “Presets”} | 99 |
| {“lang-en”: “PC Software”, “lang-nl”: “PC Software”, “lang-de”: “PC Software”, “lang-it”: “PC Software”, “lang-es”: “PC Software”, “lang-fr”: “PC Software”, “lang-da”: “PC Software”, “lang-tr”: “PC Software”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} |
*Tilt screen for optimal image
| {“lang-en”: “Features”, “lang-nl”: “Functies”, “lang-de”: “Features”, “lang-it”: “Features”, “lang-es”: “Features”, “lang-fr”: “Features”, “lang-da”: “Features”, “lang-tr”: “Features”} | {“lang-en”: “Digital”, “lang-nl”: “Digitaal”, “lang-de”: “Digital”, “lang-it”: “Digital”, “lang-es”: “Digital”, “lang-fr”: “Digital”, “lang-da”: “Digital”, “lang-tr”: “Digital”} |
|---|---|
| {“lang-en”: “Track”, “lang-nl”: “Track (torque tracking met aanhaalmoment weergave)”, “lang-de”: “Track”, “lang-it”: “Track”, “lang-es”: “Track”, “lang-fr”: “Track”, “lang-da”: “Track”, “lang-tr”: “Track”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} |
| {“lang-en”: “Peak”, “lang-nl”: “Aanhaalmoment Piekwaarde”, “lang-de”: “Peak”, “lang-it”: “Peak”, “lang-es”: “Peak”, “lang-fr”: “Peak”, “lang-da”: “Peak”, “lang-tr”: “Peak”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} |
| {“lang-en”: “Presets”, “lang-nl”: “Voorkeuze instelling”, “lang-de”: “Presets”, “lang-it”: “Presets”, “lang-es”: “Presets”, “lang-fr”: “Presets”, “lang-da”: “Presets”, “lang-tr”: “Presets”} | 99 |
| {“lang-en”: “PC Software”, “lang-nl”: “PC Software”, “lang-de”: “PC Software”, “lang-it”: “PC Software”, “lang-es”: “PC Software”, “lang-fr”: “PC Software”, “lang-da”: “PC Software”, “lang-tr”: “PC Software”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} |
Options
