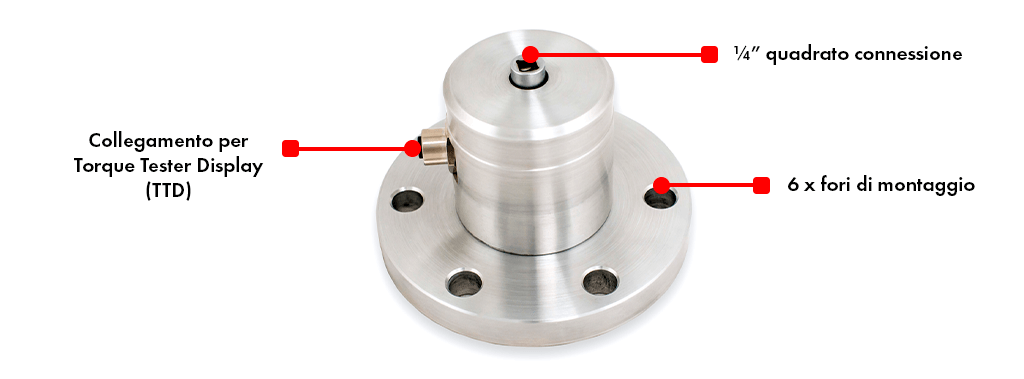

Torsiometro digitale DTT020
Prezzi: €999
- Range disponibile: 2 – 20 Nm
- SKU DTT020: 222110
Accessori
Verifica – Facile da utilizzare
- Deviazione massima: circa lo 0,25% rispetto al valore visualizzato
- La coppia di serraggio può essere verificata utilizzando dei preset di coppia
- Registrazione del primo picco e del picco dinamico
- Torsiometro con display TTD e Torsiometro digitale (DTT) sono intercambiabili
- Utensili di verifica a trasmissione continua (max. 1200 giri/min.) e utensili dinamometrici con azionamento manuale
- Lingue disponibili: inglese, tedesco, francese, spagnolo, italiano, russo, polacco, portoghese, cinese
- Unità di misura: Nm, ozf.in, lbf.in, lbf.ft, kgf.cm, kgf.m
Intelligente e facile da utilizzare
Ricca di funzioni intelligenti. Facile da azionare.
Chiarezza e precisione
Luminoso display OLED con barra di avanzamento e cicalino per segnalazione LED OK/KO (display del torsiometro).
Solidità e accuratezza
Materiali avanzati indicati per un uso rigoroso e verifiche dall’alto grado di accuratezza.
Tracciabilità
Gegevensoverdracht via USB naar pc-software of door gebruik te maken van een van onze draTrasferimento dei i dati tramite USB al programma installato sul PC o possibilità di passare a una delle nostre opzioni wireless.aadloze opties.
Gamma di prodotti
| {“lang-en”: “Model”, “lang-nl”: “Model”, “lang-de”: “Modell”, “lang-it”: “Modello”, “lang-es”: “Modelo”, “lang-fr”: “Modèle”, “lang-da”: “Model”, “lang-tr”: “Model”} | {“lang-en”: “Torque range”, “lang-nl”: “Momentbereik”, “lang-de”: “Drehmoment- bereich”, “lang-it”: “Range di coppia”, “lang-es”: “Rango de par”, “lang-fr”: “Plage de couple”, “lang-da”: “Momentområde”, “lang-tr”: “Tork araligi”} | {“lang-en”: “Socket”, “lang-nl”: “Ingangsdrijving”, “lang-de”: “Socket”, “lang-it”: “Socket”, “lang-es”: “Socket”, “lang-fr”: “Socket”, “lang-da”: “Socket”, “lang-tr”: “Socket”} | {“lang-en”: “Dim. H”, “lang-nl”: “Afm. H”, “lang-de”: “Maße H”, “lang-it”: “Dim. H”, “lang-es”: “Dim. H”, “lang-fr”: “Dim. H”, “lang-da”: “Dim. H”, “lang-tr”: “Boyut H”} | {“lang-en”: “Weight”, “lang-nl”: “Gewicht”, “lang-de”: “Gewicht”, “lang-it”: “Peso”, “lang-es”: “Peso”, “lang-fr”: “Poids”, “lang-da”: “Agirlik”, “lang-tr”: “Agirlik”} |
|---|---|---|---|---|
| DTT010 | 1-10 Nm | ¼” | 75 mm | 0,7 Kg |
| DTT020 | 2-20 Nm | ¼” | 75 mm | 0,7 Kg |
| DTT050 | 5-50 Nm | ⅜” | 120 mm | 1,2 Kg |
| DTT100 | 10-100 Nm | ⅜” | 120 mm | 1,2 Kg |
| DTT200 | 20-200 Nm | ½” | 120 mm | 1,2 Kg |
| DTT340 | 34-340 Nm | ½” | 120 mm | 1,2 Kg |
| DTT600 | 60-600 Nm | ¾” | 135 mm | 1,6 Kg |
| DTT800 | 80-800 Nm | ¾” | 147 mm | 2,8 Kg |
| DTT1000 | 100-1.000 Nm | ¾” | 147 mm | 2,8 Kg |
| DTT1500 | 150-1.500 Nm | 1″ | 177 mm | 3,8 Kg |
| DTT2000 | 200-2.000 Nm | 1″ | 177 mm | 3,8 Kg |
| BTT020 | 2-20 Nm | ¼” | 88 mm | n/a |
| BTT050 | 5-50 Nm | ⅜” | 88 mm | n/a |
| BTT135 | 13.5-135 Nm | ⅜” | 88 mm | n/a |
| BTT200 | 20-200 Nm | ½” | 88 mm | n/a |
| BTT340 | 34-340 Nm | ½” | 88 mm | n/a |
| BTT1000 | 100-1.000 Nm | 1″ | 88 mm | n/a |
| BTT1500 | 150-1.500 Nm | 1″ | 88 mm | n/a |
*Inclina lo schermo per una visione ottimale
| {“lang-en”: “Model”, “lang-nl”: “Model”, “lang-de”: “Modell”, “lang-it”: “Modello”, “lang-es”: “Modelo”, “lang-fr”: “Modèle”, “lang-da”: “Model”, “lang-tr”: “Model”} | {“lang-en”: “Torque range”, “lang-nl”: “Momentbereik”, “lang-de”: “Drehmoment- bereich”, “lang-it”: “Range di coppia”, “lang-es”: “Rango de par”, “lang-fr”: “Plage de couple”, “lang-da”: “Momentområde”, “lang-tr”: “Tork araligi”} | {“lang-en”: “Socket”, “lang-nl”: “Ingangsdrijving”, “lang-de”: “Socket”, “lang-it”: “Socket”, “lang-es”: “Socket”, “lang-fr”: “Socket”, “lang-da”: “Socket”, “lang-tr”: “Socket”} | {“lang-en”: “Dim. H”, “lang-nl”: “Afm. H”, “lang-de”: “Maße H”, “lang-it”: “Dim. H”, “lang-es”: “Dim. H”, “lang-fr”: “Dim. H”, “lang-da”: “Dim. H”, “lang-tr”: “Boyut H”} | {“lang-en”: “Weight”, “lang-nl”: “Gewicht”, “lang-de”: “Gewicht”, “lang-it”: “Peso”, “lang-es”: “Peso”, “lang-fr”: “Poids”, “lang-da”: “Agirlik”, “lang-tr”: “Agirlik”} |
|---|---|---|---|---|
| DTT010 | 1-10 Nm | ¼” | 75 mm | 0,7 Kg |
| DTT020 | 2-20 Nm | ¼” | 75 mm | 0,7 Kg |
| DTT050 | 5-50 Nm | ⅜” | 120 mm | 1,2 Kg |
| DTT100 | 10-100 Nm | ⅜” | 120 mm | 1,2 Kg |
| DTT200 | 20-200 Nm | ½” | 120 mm | 1,2 Kg |
| DTT340 | 34-340 Nm | ½” | 120 mm | 1,2 Kg |
| DTT600 | 60-600 Nm | ¾” | 135 mm | 1,6 Kg |
| DTT800 | 80-800 Nm | ¾” | 147 mm | 2,8 Kg |
| DTT1000 | 100-1.000 Nm | ¾” | 147 mm | 2,8 Kg |
| DTT1500 | 150-1.500 Nm | 1″ | 177 mm | 3,8 Kg |
| DTT2000 | 200-2.000 Nm | 1″ | 177 mm | 3,8 Kg |
| BTT020 | 2-20 Nm | ¼” | 88 mm | n/a |
| BTT050 | 5-50 Nm | ⅜” | 88 mm | n/a |
| BTT135 | 13.5-135 Nm | ⅜” | 88 mm | n/a |
| BTT200 | 20-200 Nm | ½” | 88 mm | n/a |
| BTT340 | 34-340 Nm | ½” | 88 mm | n/a |
| BTT1000 | 100-1.000 Nm | 1″ | 88 mm | n/a |
| BTT1500 | 150-1.500 Nm | 1″ | 88 mm | n/a |
Caratteristiche
| {“lang-en”: “Features”, “lang-nl”: “Functies”, “lang-de”: “Features”, “lang-it”: “Features”, “lang-es”: “Features”, “lang-fr”: “Features”, “lang-da”: “Features”, “lang-tr”: “Features”} | DTT | BTT |
|---|---|---|
| {“lang-en”: “Track”, “lang-nl”: “Track (torque tracking met aanhaalmoment weergave)”, “lang-de”: “Track”, “lang-it”: “Track”, “lang-es”: “Track”, “lang-fr”: “Track”, “lang-da”: “Track”, “lang-tr”: “Track”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} |
| {“lang-en”: “Peak”, “lang-nl”: “Aanhaalmoment Piekwaarde”, “lang-de”: “Peak”, “lang-it”: “Peak”, “lang-es”: “Peak”, “lang-fr”: “Peak”, “lang-da”: “Peak”, “lang-tr”: “Peak”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} |
| {“lang-en”: “Presets”, “lang-nl”: “Voorkeuze instelling”, “lang-de”: “Presets”, “lang-it”: “Presets”, “lang-es”: “Presets”, “lang-fr”: “Presets”, “lang-da”: “Presets”, “lang-tr”: “Presets”} | 99 | 99 |
| {“lang-en”: “Click Torque”, “lang-nl”: “Klik momentsleutels”, “lang-de”: “Click Torque”, “lang-it”: “Click Torque”, “lang-es”: “Click Torque”, “lang-fr”: “Click Torque”, “lang-da”: “Click Torque”, “lang-tr”: “Click Torque”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} |
| {“lang-en”: “Dynamic Preset”, “lang-nl”: “Dynamische voorkeuze instelling”, “lang-de”: “Dynamic Preset”, “lang-it”: “Dynamic Preset”, “lang-es”: “Dynamic Preset”, “lang-fr”: “Dynamic Preset”, “lang-da”: “Dynamic Preset”, “lang-tr”: “Dynamic Preset”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} |
| {“lang-en”: “PC Software”, “lang-nl”: “PC Software”, “lang-de”: “PC Software”, “lang-it”: “PC Software”, “lang-es”: “PC Software”, “lang-fr”: “PC Software”, “lang-da”: “PC Software”, “lang-tr”: “PC Software”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} |
*Inclina lo schermo per una visione ottimale
| {“lang-en”: “Features”, “lang-nl”: “Functies”, “lang-de”: “Features”, “lang-it”: “Features”, “lang-es”: “Features”, “lang-fr”: “Features”, “lang-da”: “Features”, “lang-tr”: “Features”} | DTT | BTT |
|---|---|---|
| {“lang-en”: “Track”, “lang-nl”: “Track (torque tracking met aanhaalmoment weergave)”, “lang-de”: “Track”, “lang-it”: “Track”, “lang-es”: “Track”, “lang-fr”: “Track”, “lang-da”: “Track”, “lang-tr”: “Track”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} |
| {“lang-en”: “Peak”, “lang-nl”: “Aanhaalmoment Piekwaarde”, “lang-de”: “Peak”, “lang-it”: “Peak”, “lang-es”: “Peak”, “lang-fr”: “Peak”, “lang-da”: “Peak”, “lang-tr”: “Peak”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} |
| {“lang-en”: “Presets”, “lang-nl”: “Voorkeuze instelling”, “lang-de”: “Presets”, “lang-it”: “Presets”, “lang-es”: “Presets”, “lang-fr”: “Presets”, “lang-da”: “Presets”, “lang-tr”: “Presets”} | 99 | 99 |
| {“lang-en”: “Click Torque”, “lang-nl”: “Klik momentsleutels”, “lang-de”: “Click Torque”, “lang-it”: “Click Torque”, “lang-es”: “Click Torque”, “lang-fr”: “Click Torque”, “lang-da”: “Click Torque”, “lang-tr”: “Click Torque”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} |
| {“lang-en”: “Dynamic Preset”, “lang-nl”: “Dynamische voorkeuze instelling”, “lang-de”: “Dynamic Preset”, “lang-it”: “Dynamic Preset”, “lang-es”: “Dynamic Preset”, “lang-fr”: “Dynamic Preset”, “lang-da”: “Dynamic Preset”, “lang-tr”: “Dynamic Preset”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} |
| {“lang-en”: “PC Software”, “lang-nl”: “PC Software”, “lang-de”: “PC Software”, “lang-it”: “PC Software”, “lang-es”: “PC Software”, “lang-fr”: “PC Software”, “lang-da”: “PC Software”, “lang-tr”: “PC Software”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} |
