Offset ringsleutels
Voor toepassingen waar de momentsleutel vanwege de hoogte niet toepasbaar is, bieden de Offset ringsleutels de oplossing.
De Offset Ringsleutels zijn verkrijgbaar in drie versies: CT Offset ringsleutel, CX Offset ringsleutel en de HX Offset ringsleutel.

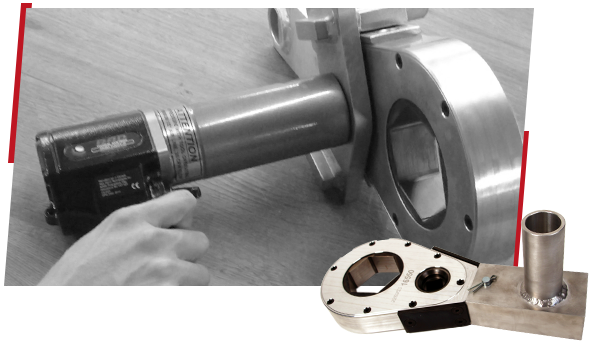

Video afspelen over Offset Gearboxes

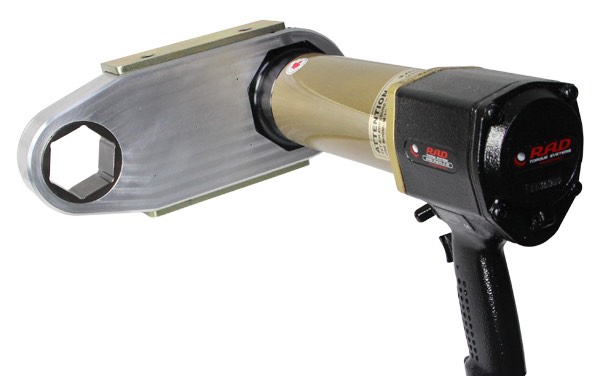

CT Offset ringsleutel
- Max. aanhaalmoment: 10.000 Nm
De RTT CT Offset ringsleutel combineert naadloos de precisie en kracht van hydraulische momentsleutels met de snelheid en het gemak van accu-, pneumatische of elektrische momentsleutels.
Deze unieke combinatie biedt uitzonderlijke veelzijdigheid, waardoor het ideaal is voor een breed scala aan bouttoepassingen waarbij beperkte toegang tot de bout een uitdaging vormt.
Met zijn laag-profiel ontwerp biedt de CT Offset ringsleutel hetzelfde niveau van bouttoegang als traditionele hydraulische momentsleutels.
Dankzij de 1:3 verhouding van de CT Offset ringsleutel is slechts een lichtgewicht en compacte RAD-momentsleutel nodig.
Via de volgende 2 stappen bepaalt u welke uitvoering u nodig heeft:
Stap 1: Kies het type CT Offset ringsleutel.
Stap 2: Kies een zeskantverkleiner om de CT Offset ringsleutel toepasbaar te maken voor verschillende boutmaten.
Belangrijkste voordelen
- Compatibel met RAD accu-, pneumatische of elektrische momentsleutels
- Eenvoudige werking: Geen pompen, slangen, hydraulische olie of hoge druk vereist
- Snelheid: Beduidend sneller dan hydraulische momentsleutels
- Duurzaam en betrouwbaar: Ontworpen voor zwaar industrieel gebruik
- Zelfde dunne radius als hydraulische momentsleutels
- Weinig onderhoud vereist
Belangrijke kenmerken
- Beschikbaar in drie modellen voor maximaal 2.000 Nm, 4.000 Nm en 10.000 Nm
- Metrische zeskantmaten 27 - 110 mm
- Ingebouwd reactiearm
- Inclusief ontgrendelingshendel
- Kan van boven- of onderzijde worden bediend
- Inclusief hijsoog en handvat
Alle CT Offset ringsleutels worden geleverd inclusief:
- CT Offset ringsleutel
- Handvat
- Hijsoog
- Gebruikershandleiding
- Weerbestendige opbergkoffer
1. Kies type
CT2 – Geschikt voor B-RAD SELECT 275 & 700, RAD 275 & 475 SL
| {"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod."} | {"lang-en": "Model", "lang-nl": "Model", "lang-de": "Modell", "lang-it": "Modello", "lang-es": "Modelo", "lang-fr": "Modèle"} | {"lang-en": "Hex size", "lang-nl": "Sleutelwijdte maat", "lang-de": "Sechskantschlüsselweite", "lang-it": "Dimensione esagonale", "lang-es": "Tamaño hex", "lang-fr": "Dimension hexagonale"} | {"lang-en": "Hex type", "lang-nl": "Sleutelwijdte type", "lang-de": "Sechskantschlüsseltyp", "lang-it": "Tipo esagonale", "lang-es": "Tipo hex", "lang-fr": "Type hexagonal"} | {"lang-en": "Ratio", "lang-nl": "Ratio", "lang-de": "Verhältnis", "lang-it": "Rapporto", "lang-es": "Ratio", "lang-fr": "Rapport"} | {"lang-en": "Max input", "lang-nl": "Max invoer", "lang-de": "Max Eingang", "lang-it": "Max input", "lang-es": "Max input", "lang-fr": "Sortie max"} | {"lang-en": "Max output", "lang-nl": "Max uitvoer", "lang-de": "Max Ausgang", "lang-it": "Max output", "lang-es": "Max output", "lang-fr": "Entrée max"} | {"lang-en": "Weight", "lang-nl": "Gewicht", "lang-de": "Gewicht", "lang-it": "Peso", "lang-es": "Peso", "lang-fr": "Poids"} | {"lang-en": "Dim. L", "lang-nl": "Afm. L", "lang-de": "Maße L", "lang-it": "Dim. L", "lang-es": "Dim. L", "lang-fr": "Dim. L"} | {"lang-en": "Dim. D", "lang-nl": "Afm. D", "lang-de": "Maße D", "lang-it": "Dim. D", "lang-es": "Dim. D", "lang-fr": "Dim. D"} | {"lang-en": "Dim. W", "lang-nl": "Afm. W", "lang-de": "Maße W", "lang-it": "Dim. W", "lang-es": "Dim. W", "lang-fr": "Dim. W"} | {"lang-en": "Dim. H", "lang-nl": "Afm. H", "lang-de": "Maße H", "lang-it": "Dim. H", "lang-es": "Dim. H", "lang-fr": "Dim. H"} | {"lang-en": "Dim. C", "lang-nl": "Afm. C", "lang-de": "Maße C", "lang-it": "Dim. C", "lang-es": "Dim. C", "lang-fr": "Dim. C"} | {"lang-en": "Dim. T", "lang-nl": "Afm. T", "lang-de": "Maße T", "lang-it": "Dim. T", "lang-es": "Dim. T", "lang-fr": "Dim. T"} |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 🠋 201320 | CT2 | 27 mm | 6PT | 1:3 | 670 Nm | 2.000 Nm | 2,6 Kg | 118 | 68 | 29 | 181 | 117 | 10 |
| 🠋 201321 | CT2 | 30 mm | 6PT | 1:3 | 670 Nm | 2.000 Nm | 2,6 Kg | 138 | 68 | 29 | 181 | 117 | 11 |
| 🠋 201322 | CT2 | 32 mm | 6PT | 1:3 | 670 Nm | 2.000 Nm | 2,6 Kg | 138 | 68 | 29 | 181 | 117 | 10 |
| 🠋 201323 | CT2 | 36 mm | 6PT | 1:3 | 670 Nm | 2.000 Nm | 2,7 Kg | 159 | 68 | 29 | 181 | 117 | 10 |
| 🠋 201324 | CT2 | 41 mm | 6PT | 1:3 | 670 Nm | 2.000 Nm | 2,7 Kg | 180 | 68 | 29 | 181 | 117 | 10 |
| 🠋 201325 | CT2 | 46 mm | 6PT | 1:3 | 670 Nm | 2.000 Nm | 2,7 Kg | 200 | 68 | 29 | 181 | 117 | 10 |
| 🠋 201326 | CT2 | 50 mm | 6PT | 1:3 | 670 Nm | 2.000 Nm | 2,8 Kg | 221 | 68 | 29 | 181 | 117 | 10 |
| 🠋 201327 | CT2 | 55 mm | 6PT | 1:3 | 670 Nm | 2.000 Nm | 2,8 Kg | 242 | 68 | 29 | 181 | 117 | 10 |
| 🠋 201328 | CT2 | 60 mm | 6PT | 1:3 | 670 Nm | 2.000 Nm | 2,8 Kg | 263 | 68 | 29 | 181 | 117 | 10 |
*Kantel scherm voor optimaal beeld
| {“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”} | {“lang-en”: “Model”, “lang-nl”: “Model”, “lang-de”: “Modell”, “lang-it”: “Modello”, “lang-es”: “Modelo”, “lang-fr”: “Modèle”} | {“lang-en”: “Hex size”, “lang-nl”: “Sleutelwijdte maat”, “lang-de”: “Sechskantschlüsselweite”, “lang-it”: “Dimensione esagonale”, “lang-es”: “Tamaño hex”, “lang-fr”: “Dimension hexagonale”} | {“lang-en”: “Hex type”, “lang-nl”: “Sleutelwijdte type”, “lang-de”: “Sechskantschlüsseltyp”, “lang-it”: “Tipo esagonale”, “lang-es”: “Tipo hex”, “lang-fr”: “Type hexagonal”} | {“lang-en”: “Ratio”, “lang-nl”: “Ratio”, “lang-de”: “Verhältnis”, “lang-it”: “Rapporto”, “lang-es”: “Ratio”, “lang-fr”: “Rapport”} | {“lang-en”: “Max input”, “lang-nl”: “Max invoer”, “lang-de”: “Max Eingang”, “lang-it”: “Max input”, “lang-es”: “Max input”, “lang-fr”: “Sortie max”} | {“lang-en”: “Max output”, “lang-nl”: “Max uitvoer”, “lang-de”: “Max Ausgang”, “lang-it”: “Max output”, “lang-es”: “Max output”, “lang-fr”: “Entrée max”} | {“lang-en”: “Weight”, “lang-nl”: “Gewicht”, “lang-de”: “Gewicht”, “lang-it”: “Peso”, “lang-es”: “Peso”, “lang-fr”: “Poids”} | {“lang-en”: “Dim. L”, “lang-nl”: “Afm. L”, “lang-de”: “Maße L”, “lang-it”: “Dim. L”, “lang-es”: “Dim. L”, “lang-fr”: “Dim. L”} | {“lang-en”: “Dim. D”, “lang-nl”: “Afm. D”, “lang-de”: “Maße D”, “lang-it”: “Dim. D”, “lang-es”: “Dim. D”, “lang-fr”: “Dim. D”} | {“lang-en”: “Dim. W”, “lang-nl”: “Afm. W”, “lang-de”: “Maße W”, “lang-it”: “Dim. W”, “lang-es”: “Dim. W”, “lang-fr”: “Dim. W”} | {“lang-en”: “Dim. H”, “lang-nl”: “Afm. H”, “lang-de”: “Maße H”, “lang-it”: “Dim. H”, “lang-es”: “Dim. H”, “lang-fr”: “Dim. H”} | {“lang-en”: “Dim. C”, “lang-nl”: “Afm. C”, “lang-de”: “Maße C”, “lang-it”: “Dim. C”, “lang-es”: “Dim. C”, “lang-fr”: “Dim. C”} | {“lang-en”: “Dim. T”, “lang-nl”: “Afm. T”, “lang-de”: “Maße T”, “lang-it”: “Dim. T”, “lang-es”: “Dim. T”, “lang-fr”: “Dim. T”} |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 🠋 201320 | CT2 | 27 mm | 6PT | 1:3 | 670 Nm | 2.000 Nm | 2,6 Kg | 118 | 68 | 29 | 181 | 117 | 10 |
| 🠋 201321 | CT2 | 30 mm | 6PT | 1:3 | 670 Nm | 2.000 Nm | 2,6 Kg | 138 | 68 | 29 | 181 | 117 | 11 |
| 🠋 201322 | CT2 | 32 mm | 6PT | 1:3 | 670 Nm | 2.000 Nm | 2,6 Kg | 138 | 68 | 29 | 181 | 117 | 10 |
| 🠋 201323 | CT2 | 36 mm | 6PT | 1:3 | 670 Nm | 2.000 Nm | 2,7 Kg | 159 | 68 | 29 | 181 | 117 | 10 |
| 🠋 201324 | CT2 | 41 mm | 6PT | 1:3 | 670 Nm | 2.000 Nm | 2,7 Kg | 180 | 68 | 29 | 181 | 117 | 10 |
| 🠋 201325 | CT2 | 46 mm | 6PT | 1:3 | 670 Nm | 2.000 Nm | 2,7 Kg | 200 | 68 | 29 | 181 | 117 | 10 |
| 🠋 201326 | CT2 | 50 mm | 6PT | 1:3 | 670 Nm | 2.000 Nm | 2,8 Kg | 221 | 68 | 29 | 181 | 117 | 10 |
| 🠋 201327 | CT2 | 55 mm | 6PT | 1:3 | 670 Nm | 2.000 Nm | 2,8 Kg | 242 | 68 | 29 | 181 | 117 | 10 |
| 🠋 201328 | CT2 | 60 mm | 6PT | 1:3 | 670 Nm | 2.000 Nm | 2,8 Kg | 263 | 68 | 29 | 181 | 117 | 10 |
CT4 – Geschikt voor B-RAD SELECT 700 & 1400, V-RAD SELECT 1400, RAD 14 GX
| {"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod."} | {"lang-en": "Model", "lang-nl": "Model", "lang-de": "Modell", "lang-it": "Modello", "lang-es": "Modelo", "lang-fr": "Modèle"} | {"lang-en": "Hex size", "lang-nl": "Sleutelwijdte maat", "lang-de": "Sechskantschlüsselweite", "lang-it": "Dimensione esagonale", "lang-es": "Tamaño hex", "lang-fr": "Dimension hexagonale"} | {"lang-en": "Hex type", "lang-nl": "Sleutelwijdte type", "lang-de": "Sechskantschlüsseltyp", "lang-it": "Tipo esagonale", "lang-es": "Tipo hex", "lang-fr": "Type hexagonal"} | {"lang-en": "Ratio", "lang-nl": "Ratio", "lang-de": "Verhältnis", "lang-it": "Rapporto", "lang-es": "Ratio", "lang-fr": "Rapport"} | {"lang-en": "Max input", "lang-nl": "Max invoer", "lang-de": "Max Eingang", "lang-it": "Max input", "lang-es": "Max input", "lang-fr": "Sortie max"} | {"lang-en": "Max output", "lang-nl": "Max uitvoer", "lang-de": "Max Ausgang", "lang-it": "Max output", "lang-es": "Max output", "lang-fr": "Entrée max"} | {"lang-en": "Weight", "lang-nl": "Gewicht", "lang-de": "Gewicht", "lang-it": "Peso", "lang-es": "Peso", "lang-fr": "Poids"} | {"lang-en": "Dim. L", "lang-nl": "Afm. L", "lang-de": "Maße L", "lang-it": "Dim. L", "lang-es": "Dim. L", "lang-fr": "Dim. L"} | {"lang-en": "Dim. D", "lang-nl": "Afm. D", "lang-de": "Maße D", "lang-it": "Dim. D", "lang-es": "Dim. D", "lang-fr": "Dim. D"} | {"lang-en": "Dim. W", "lang-nl": "Afm. W", "lang-de": "Maße W", "lang-it": "Dim. W", "lang-es": "Dim. W", "lang-fr": "Dim. W"} | {"lang-en": "Dim. H", "lang-nl": "Afm. H", "lang-de": "Maße H", "lang-it": "Dim. H", "lang-es": "Dim. H", "lang-fr": "Dim. H"} | {"lang-en": "Dim. C", "lang-nl": "Afm. C", "lang-de": "Maße C", "lang-it": "Dim. C", "lang-es": "Dim. C", "lang-fr": "Dim. C"} | {"lang-en": "Dim. T", "lang-nl": "Afm. T", "lang-de": "Maße T", "lang-it": "Dim. T", "lang-es": "Dim. T", "lang-fr": "Dim. T"} |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 🠋 201360 | CT4 | 46 mm | 6PT | 1:3 | 1.330 Nm | 4.000 Nm | 5,8 Kg | 204 | 80 | 38 | 242 | 156 | 13 |
| 🠋 201361 | CT4 | 50 mm | 6PT | 1:3 | 1.330 Nm | 4.000 Nm | 5,8 Kg | 226 | 80 | 38 | 242 | 156 | 13 |
| 🠋 201362 | CT4 | 55 mm | 6PT | 1:3 | 1.330 Nm | 4.000 Nm | 5,9 Kg | 247 | 80 | 38 | 242 | 156 | 13 |
| 🠋 201363 | CT4 | 60 mm | 6PT | 1:3 | 1.330 Nm | 4.000 Nm | 5,9 Kg | 268 | 80 | 38 | 242 | 156 | 13 |
| 🠋 201364 | CT4 | 65 mm | 6PT | 1:3 | 1.330 Nm | 4.000 Nm | 6,0 Kg | 289 | 80 | 38 | 242 | 156 | 13 |
| 🠋 201365 | CT4 | 70 mm | 6PT | 1:3 | 1.330 Nm | 4.000 Nm | 6,0 Kg | 310 | 80 | 38 | 242 | 156 | 13 |
| 🠋 201366 | CT4 | 75 mm | 6PT | 1:3 | 1.330 Nm | 4.000 Nm | 6,1 Kg | 331 | 80 | 38 | 242 | 156 | 13 |
*Kantel scherm voor optimaal beeld
| {“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”} | {“lang-en”: “Model”, “lang-nl”: “Model”, “lang-de”: “Modell”, “lang-it”: “Modello”, “lang-es”: “Modelo”, “lang-fr”: “Modèle”} | {“lang-en”: “Hex size”, “lang-nl”: “Sleutelwijdte maat”, “lang-de”: “Sechskantschlüsselweite”, “lang-it”: “Dimensione esagonale”, “lang-es”: “Tamaño hex”, “lang-fr”: “Dimension hexagonale”} | {“lang-en”: “Hex type”, “lang-nl”: “Sleutelwijdte type”, “lang-de”: “Sechskantschlüsseltyp”, “lang-it”: “Tipo esagonale”, “lang-es”: “Tipo hex”, “lang-fr”: “Type hexagonal”} | {“lang-en”: “Ratio”, “lang-nl”: “Ratio”, “lang-de”: “Verhältnis”, “lang-it”: “Rapporto”, “lang-es”: “Ratio”, “lang-fr”: “Rapport”} | {“lang-en”: “Max input”, “lang-nl”: “Max invoer”, “lang-de”: “Max Eingang”, “lang-it”: “Max input”, “lang-es”: “Max input”, “lang-fr”: “Sortie max”} | {“lang-en”: “Max output”, “lang-nl”: “Max uitvoer”, “lang-de”: “Max Ausgang”, “lang-it”: “Max output”, “lang-es”: “Max output”, “lang-fr”: “Entrée max”} | {“lang-en”: “Weight”, “lang-nl”: “Gewicht”, “lang-de”: “Gewicht”, “lang-it”: “Peso”, “lang-es”: “Peso”, “lang-fr”: “Poids”} | {“lang-en”: “Dim. L”, “lang-nl”: “Afm. L”, “lang-de”: “Maße L”, “lang-it”: “Dim. L”, “lang-es”: “Dim. L”, “lang-fr”: “Dim. L”} | {“lang-en”: “Dim. D”, “lang-nl”: “Afm. D”, “lang-de”: “Maße D”, “lang-it”: “Dim. D”, “lang-es”: “Dim. D”, “lang-fr”: “Dim. D”} | {“lang-en”: “Dim. W”, “lang-nl”: “Afm. W”, “lang-de”: “Maße W”, “lang-it”: “Dim. W”, “lang-es”: “Dim. W”, “lang-fr”: “Dim. W”} | {“lang-en”: “Dim. H”, “lang-nl”: “Afm. H”, “lang-de”: “Maße H”, “lang-it”: “Dim. H”, “lang-es”: “Dim. H”, “lang-fr”: “Dim. H”} | {“lang-en”: “Dim. C”, “lang-nl”: “Afm. C”, “lang-de”: “Maße C”, “lang-it”: “Dim. C”, “lang-es”: “Dim. C”, “lang-fr”: “Dim. C”} | {“lang-en”: “Dim. T”, “lang-nl”: “Afm. T”, “lang-de”: “Maße T”, “lang-it”: “Dim. T”, “lang-es”: “Dim. T”, “lang-fr”: “Dim. T”} |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 🠋 201360 | CT4 | 46 mm | 6PT | 1:3 | 1.330 Nm | 4.000 Nm | 5,8 Kg | 204 | 80 | 38 | 242 | 156 | 13 |
| 🠋 201361 | CT4 | 50 mm | 6PT | 1:3 | 1.330 Nm | 4.000 Nm | 5,8 Kg | 226 | 80 | 38 | 242 | 156 | 13 |
| 🠋 201362 | CT4 | 55 mm | 6PT | 1:3 | 1.330 Nm | 4.000 Nm | 5,9 Kg | 247 | 80 | 38 | 242 | 156 | 13 |
| 🠋 201363 | CT4 | 60 mm | 6PT | 1:3 | 1.330 Nm | 4.000 Nm | 5,9 Kg | 268 | 80 | 38 | 242 | 156 | 13 |
| 🠋 201364 | CT4 | 65 mm | 6PT | 1:3 | 1.330 Nm | 4.000 Nm | 6,0 Kg | 289 | 80 | 38 | 242 | 156 | 13 |
| 🠋 201365 | CT4 | 70 mm | 6PT | 1:3 | 1.330 Nm | 4.000 Nm | 6,0 Kg | 310 | 80 | 38 | 242 | 156 | 13 |
| 🠋 201366 | CT4 | 75 mm | 6PT | 1:3 | 1.330 Nm | 4.000 Nm | 6,1 Kg | 331 | 80 | 38 | 242 | 156 | 13 |
CT8 – Geschikt voor B-RAD SELECT 4000, RAD 40 DX, V-RAD SELECT 4000
| {"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod."} | {"lang-en": "Model", "lang-nl": "Model", "lang-de": "Modell", "lang-it": "Modello", "lang-es": "Modelo", "lang-fr": "Modèle"} | {"lang-en": "Hex size", "lang-nl": "Sleutelwijdte maat", "lang-de": "Sechskantschlüsselweite", "lang-it": "Dimensione esagonale", "lang-es": "Tamaño hex", "lang-fr": "Dimension hexagonale"} | {"lang-en": "Hex type", "lang-nl": "Sleutelwijdte type", "lang-de": "Sechskantschlüsseltyp", "lang-it": "Tipo esagonale", "lang-es": "Tipo hex", "lang-fr": "Type hexagonal"} | {"lang-en": "Ratio", "lang-nl": "Ratio", "lang-de": "Verhältnis", "lang-it": "Rapporto", "lang-es": "Ratio", "lang-fr": "Rapport"} | {"lang-en": "Max input", "lang-nl": "Max invoer", "lang-de": "Max Eingang", "lang-it": "Max input", "lang-es": "Max input", "lang-fr": "Sortie max"} | {"lang-en": "Max output", "lang-nl": "Max uitvoer", "lang-de": "Max Ausgang", "lang-it": "Max output", "lang-es": "Max output", "lang-fr": "Entrée max"} | {"lang-en": "Weight", "lang-nl": "Gewicht", "lang-de": "Gewicht", "lang-it": "Peso", "lang-es": "Peso", "lang-fr": "Poids"} | {"lang-en": "Dim. L", "lang-nl": "Afm. L", "lang-de": "Maße L", "lang-it": "Dim. L", "lang-es": "Dim. L", "lang-fr": "Dim. L"} | {"lang-en": "Dim. D", "lang-nl": "Afm. D", "lang-de": "Maße D", "lang-it": "Dim. D", "lang-es": "Dim. D", "lang-fr": "Dim. D"} | {"lang-en": "Dim. W", "lang-nl": "Afm. W", "lang-de": "Maße W", "lang-it": "Dim. W", "lang-es": "Dim. W", "lang-fr": "Dim. W"} | {"lang-en": "Dim. H", "lang-nl": "Afm. H", "lang-de": "Maße H", "lang-it": "Dim. H", "lang-es": "Dim. H", "lang-fr": "Dim. H"} | {"lang-en": "Dim. C", "lang-nl": "Afm. C", "lang-de": "Maße C", "lang-it": "Dim. C", "lang-es": "Dim. C", "lang-fr": "Dim. C"} | {"lang-en": "Dim. T", "lang-nl": "Afm. T", "lang-de": "Maße T", "lang-it": "Dim. T", "lang-es": "Dim. T", "lang-fr": "Dim. T"} |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 🠋 201400 | CT8 | 55 mm | 6PT | 1:3 | 3.330 Nm | 10.000 Nm | 12,2 Kg | 249 | 89 | 48 | 322 | 208 | 16 |
| 🠋 201401 | CT8 | 60 mm | 6PT | 1:3 | 3.330 Nm | 10.000 Nm | 12,2 Kg | 270 | 89 | 48 | 322 | 208 | 16 |
| 🠋 201402 | CT8 | 65 mm | 6PT | 1:3 | 3.330 Nm | 10.000 Nm | 12,2 Kg | 292 | 89 | 48 | 322 | 208 | 16 |
| 🠋 201403 | CT8 | 70 mm | 6PT | 1:3 | 3.330 Nm | 10.000 Nm | 12,2 Kg | 313 | 89 | 48 | 322 | 208 | 16 |
| 🠋 201404 | CT8 | 75 mm | 6PT | 1:3 | 3.330 Nm | 10.000 Nm | 12,2 Kg | 334 | 89 | 48 | 322 | 208 | 16 |
| 🠋 201405 | CT8 | 80 mm | 6PT | 1:3 | 3.330 Nm | 10.000 Nm | 12,3 Kg | 356 | 89 | 48 | 322 | 208 | 16 |
| 🠋 201406 | CT8 | 85 mm | 6PT | 1:3 | 3.330 Nm | 10.000 Nm | 12,3 Kg | 399 | 89 | 48 | 322 | 208 | 19 |
| 🠋 201407 | CT8 | 90 mm | 6PT | 1:3 | 3.330 Nm | 10.000 Nm | 12,3 Kg | 399 | 89 | 48 | 322 | 208 | 16 |
| 🠋 201408 | CT8 | 95 mm | 6PT | 1:3 | 3.330 Nm | 10.000 Nm | 12,3 Kg | 441 | 89 | 48 | 322 | 208 | 19 |
| 🠋 201409 | CT8 | 100 mm | 6PT | 1:3 | 3.330 Nm | 10.000 Nm | 12,3 Kg | 441 | 89 | 48 | 322 | 208 | 16 |
| 🠋 201410 | CT8 | 105 mm | 6PT | 1:3 | 3.330 Nm | 10.000 Nm | 12,4 Kg | 484 | 89 | 48 | 322 | 208 | 19 |
| 🠋 201411 | CT8 | 110 mm | 6PT | 1:3 | 3.330 Nm | 10.000 Nm | 12,4 Kg | 484 | 89 | 48 | 322 | 208 | 16 |
*Kantel scherm voor optimaal beeld
| {“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”} | {“lang-en”: “Model”, “lang-nl”: “Model”, “lang-de”: “Modell”, “lang-it”: “Modello”, “lang-es”: “Modelo”, “lang-fr”: “Modèle”} | {“lang-en”: “Hex size”, “lang-nl”: “Sleutelwijdte maat”, “lang-de”: “Sechskantschlüsselweite”, “lang-it”: “Dimensione esagonale”, “lang-es”: “Tamaño hex”, “lang-fr”: “Dimension hexagonale”} | {“lang-en”: “Hex type”, “lang-nl”: “Sleutelwijdte type”, “lang-de”: “Sechskantschlüsseltyp”, “lang-it”: “Tipo esagonale”, “lang-es”: “Tipo hex”, “lang-fr”: “Type hexagonal”} | {“lang-en”: “Ratio”, “lang-nl”: “Ratio”, “lang-de”: “Verhältnis”, “lang-it”: “Rapporto”, “lang-es”: “Ratio”, “lang-fr”: “Rapport”} | {“lang-en”: “Max input”, “lang-nl”: “Max invoer”, “lang-de”: “Max Eingang”, “lang-it”: “Max input”, “lang-es”: “Max input”, “lang-fr”: “Sortie max”} | {“lang-en”: “Max output”, “lang-nl”: “Max uitvoer”, “lang-de”: “Max Ausgang”, “lang-it”: “Max output”, “lang-es”: “Max output”, “lang-fr”: “Entrée max”} | {“lang-en”: “Weight”, “lang-nl”: “Gewicht”, “lang-de”: “Gewicht”, “lang-it”: “Peso”, “lang-es”: “Peso”, “lang-fr”: “Poids”} | {“lang-en”: “Dim. L”, “lang-nl”: “Afm. L”, “lang-de”: “Maße L”, “lang-it”: “Dim. L”, “lang-es”: “Dim. L”, “lang-fr”: “Dim. L”} | {“lang-en”: “Dim. D”, “lang-nl”: “Afm. D”, “lang-de”: “Maße D”, “lang-it”: “Dim. D”, “lang-es”: “Dim. D”, “lang-fr”: “Dim. D”} | {“lang-en”: “Dim. W”, “lang-nl”: “Afm. W”, “lang-de”: “Maße W”, “lang-it”: “Dim. W”, “lang-es”: “Dim. W”, “lang-fr”: “Dim. W”} | {“lang-en”: “Dim. H”, “lang-nl”: “Afm. H”, “lang-de”: “Maße H”, “lang-it”: “Dim. H”, “lang-es”: “Dim. H”, “lang-fr”: “Dim. H”} | {“lang-en”: “Dim. C”, “lang-nl”: “Afm. C”, “lang-de”: “Maße C”, “lang-it”: “Dim. C”, “lang-es”: “Dim. C”, “lang-fr”: “Dim. C”} | {“lang-en”: “Dim. T”, “lang-nl”: “Afm. T”, “lang-de”: “Maße T”, “lang-it”: “Dim. T”, “lang-es”: “Dim. T”, “lang-fr”: “Dim. T”} |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 🠋 201400 | CT8 | 55 mm | 6PT | 1:3 | 3.330 Nm | 10.000 Nm | 12,2 Kg | 249 | 89 | 48 | 322 | 208 | 16 |
| 🠋 201401 | CT8 | 60 mm | 6PT | 1:3 | 3.330 Nm | 10.000 Nm | 12,2 Kg | 270 | 89 | 48 | 322 | 208 | 16 |
| 🠋 201402 | CT8 | 65 mm | 6PT | 1:3 | 3.330 Nm | 10.000 Nm | 12,2 Kg | 292 | 89 | 48 | 322 | 208 | 16 |
| 🠋 201403 | CT8 | 70 mm | 6PT | 1:3 | 3.330 Nm | 10.000 Nm | 12,2 Kg | 313 | 89 | 48 | 322 | 208 | 16 |
| 🠋 201404 | CT8 | 75 mm | 6PT | 1:3 | 3.330 Nm | 10.000 Nm | 12,2 Kg | 334 | 89 | 48 | 322 | 208 | 16 |
| 🠋 201405 | CT8 | 80 mm | 6PT | 1:3 | 3.330 Nm | 10.000 Nm | 12,3 Kg | 356 | 89 | 48 | 322 | 208 | 16 |
| 🠋 201406 | CT8 | 85 mm | 6PT | 1:3 | 3.330 Nm | 10.000 Nm | 12,3 Kg | 399 | 89 | 48 | 322 | 208 | 19 |
| 🠋 201407 | CT8 | 90 mm | 6PT | 1:3 | 3.330 Nm | 10.000 Nm | 12,3 Kg | 399 | 89 | 48 | 322 | 208 | 16 |
| 🠋 201408 | CT8 | 95 mm | 6PT | 1:3 | 3.330 Nm | 10.000 Nm | 12,3 Kg | 441 | 89 | 48 | 322 | 208 | 19 |
| 🠋 201409 | CT8 | 100 mm | 6PT | 1:3 | 3.330 Nm | 10.000 Nm | 12,3 Kg | 441 | 89 | 48 | 322 | 208 | 16 |
| 🠋 201410 | CT8 | 105 mm | 6PT | 1:3 | 3.330 Nm | 10.000 Nm | 12,4 Kg | 484 | 89 | 48 | 322 | 208 | 19 |
| 🠋 201411 | CT8 | 110 mm | 6PT | 1:3 | 3.330 Nm | 10.000 Nm | 12,4 Kg | 484 | 89 | 48 | 322 | 208 | 16 |
2. Kies zeskantverkleiner (indien van toepassing)
| {"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod.", "lang-da": "Prod.nr.", "lang-tr": "Ürün no."} | {"lang-en": "Reducer insert", "lang-nl": "Sleutelwijdte verloopstuk", "lang-de": "Reduziereinsatz", "lang-it": "Inserto riduttore", "lang-es": "Inserto reductor", "lang-fr": "Douille réductrice", "lang-da": "Reduktionsindsats", "lang-tr": "Eki azalt"} | {"lang-en": "Hex", "lang-nl": "Sleutelwijdte", "lang-de": "Sechskant", "lang-it": "Esagonale", "lang-es": "Hexagonal", "lang-fr": "Hexagonale", "lang-da": "Sekskantet", "lang-tr": "Altıgen"} |
|---|---|---|
| 200820 | Socket 46 mm | 24 mm |
| 200821 | Socket 46 mm | 27 mm |
| 200822 | Socket 46 mm | 30 mm |
| 200823 | Socket 46 mm | 32 mm |
| 200824 | Socket 46 mm | 36 mm |
| 200825 | Socket 46 mm | 41 mm |
| 200838 | Socket 50 mm | 46 mm |
| 200447 | Socket 50 mm | 41 mm |
| 200866 | Socket 50 mm | 36 mm |
| 200448 | Socket 50 mm | 32 mm |
| 200837 | Socket 55 mm | 46 mm |
| 200826 | Socket 60 mm | 41 mm |
| 200827 | Socket 60 mm | 46 mm |
| 200828 | Socket 60 mm | 50 mm |
| 200829 | Socket 60 mm | 55 mm |
| 200833 | Socket 75 mm | 65 mm |
| 200830 | Socket 80 mm | 55 mm |
| 200835 | Socket 80 mm | 46 mm |
| 200830 | Socket 80 mm | 55 mm |
| 200831 | Socket 80 mm | 60 mm |
| 200832 | Socket 80 mm | 65 mm |
| 200833 | Socket 80 mm | 70 mm |
| 200834 | Socket 80 mm | 75 mm |
| 200851 | Socket 95 mm | 75 mm |
| 200852 | Socket 95 mm | 85 mm |
*Kantel scherm voor optimaal beeld
| {“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”, “lang-da”: “Prod.nr.”, “lang-tr”: “Ürün no.”} | {“lang-en”: “From”, “lang-nl”: “Van”, “lang-de”: “Von”, “lang-it”: “Da”, “lang-es”: “De”, “lang-fr”: “De”, “lang-da”: “Fra”, “lang-tr”: “Nereden”} | {“lang-en”: “To”, “lang-nl”: “Tot”, “lang-de”: “Zu”, “lang-it”: “A”, “lang-es”: “A”, “lang-fr”: “À”, “lang-da”: “Til”, “lang-tr”: “Nereye”} |
|---|---|---|
| 200444 | 50 mm | 30 mm |
| 200443 | 50 mm | 32 mm |
| 200442 | 50 mm | 36 mm |
| 200441 | 50 mm | 41 mm |
| 200440 | 50 mm | 46 mm |
| 200897 | 65 mm | 36 mm |
| 200901 | 65 mm | 41 mm |
| 200902 | 65 mm | 46 mm |
| 200903 | 65 mm | 50 mm |
| 200904 | 65 mm | 55 mm |
| 200905 | 65 mm | 60 mm |
CX Offset ringsleutel
- Max. aanhaalmoment: 5.000 Nm
De RAD CX Offset ringsleutel is dankzij de verwisselbare adapter te gebruiken met diverse RAD momentsleutels, zowel met ¾ inch als met 1 inch aansluiting.
De maximale maat van de zeskant cassette is 65 mm, het maximale aanhaalmoment is 5.000 Nm. Door middel van magnetische zeskantverkleiners past de CX Offset ringsleutel op kleinere boutmaten, waardoor ook deze nauwkeurig en gemakkelijk op moment kunnen worden gezet.
Via de volgende 3 stappen bepaalt u welke uitvoering u nodig heeft:
Stap 1: Kies het type CX Offset ringsleutel.
Stap 2: Kies de aansluiting van de momentsleutel waarmee de CX Offset ringsleutel gebruikt gaat worden.
Stap 3: Kies een zeskantverkleiner om de CX Offset ringsleutel toepasbaar te maken voor verschillende boutmaten.
Alle CX Offset ringsleutels worden geleverd inclusief:
- CX Offset ringsleutel
- Verloop aandrijfvierkant van 1″ naar ¾” (alleen bij
- Weerbestendige opbergkoffer
1. Kies type
| {"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod.", "lang-da": "Prod.nr.", "lang-tr": "Ürün no."} | {"lang-en": "Model", "lang-nl": "Model", "lang-de": "Modell", "lang-it": "Modello", "lang-es": "Modelo", "lang-fr": "Modèle", "lang-da": "Model", "lang-tr": "Model"} | {"lang-en": "Square drive", "lang-nl": "Aandrijfvierkant", "lang-de": "Vierkant- antrieb", "lang-it": "Azionamento quadrato", "lang-es": "Accionamiento cuadrado", "lang-fr": "Entraînement à section carrée", "lang-da": "Firkantet drev", "lang-tr": "Kare tahrik ucu"} | {"lang-en": "Max output", "lang-nl": "Max uitvoer", "lang-de": "Max Ausgang", "lang-it": "Max output", "lang-es": "Max output", "lang-fr": "Production max", "lang-da": "Max output", "lang-tr": "Maks. giriş"} | {"lang-en": "Torque Ratio", "lang-nl": "Ratio Aanhaalmoment", "lang-de": "Drehmoment Verhältnis", "lang-it": "Rapporto di coppia", "lang-es": "Ratio de par", "lang-fr": "Rapport de couple", "lang-da": "Momentforhold", "lang-tr": "Tork oranı"} | {"lang-en": "Weight", "lang-nl": "Gewicht", "lang-de": "Gewicht", "lang-it": "Peso", "lang-es": "Peso", "lang-fr": "Poids", "lang-da": "Agirlik", "lang-tr": "Agirlik"} | {"lang-en": "Dim. L", "lang-nl": "Afm. L", "lang-de": "Maße L", "lang-it": "Dim. L", "lang-es": "Dim. L", "lang-fr": "Dim. L", "lang-da": "Dim. L", "lang-tr": "Boyut L"} | {"lang-en": "Dim. W", "lang-nl": "Afm. W", "lang-de": "Maße W", "lang-it": "Dim. W", "lang-es": "Dim. W", "lang-fr": "Dim. W", "lang-da": "Dim. W", "lang-tr": "Boyut W"} | {"lang-en": "Dim. D", "lang-nl": "Afm. D", "lang-de": "Maße D", "lang-it": "Dim. D", "lang-es": "Dim. D", "lang-fr": "Dim. D", "lang-da": "Dim. D", "lang-tr": "Boyut D"} | {"lang-en": "Dim. H", "lang-nl": "Afm. H", "lang-de": "Maße H", "lang-it": "Dim. H", "lang-es": "Dim. H", "lang-fr": "Dim. H", "lang-da": "Dim. H", "lang-tr": "Boyut H"} |
|---|---|---|---|---|---|---|---|---|---|
| 🠋 27978 | Hex 50 mm | 1" | 3.400 Nm | 1:1 | 6,7 Kg | 295 mm | 128 mm | 41 mm | 60 mm |
| 🠋 28540 | Hex 65 mm | 1" | 5.000 Nm | 1:1.42 | 11,6 Kg | 332 mm | 145 mm | 54 mm | 94 mm |
*Kantel scherm voor optimaal beeld
| {“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”, “lang-da”: “Prod.nr.”, “lang-tr”: “Ürün no.”} | {“lang-en”: “Model”, “lang-nl”: “Model”, “lang-de”: “Modell”, “lang-it”: “Modello”, “lang-es”: “Modelo”, “lang-fr”: “Modèle”, “lang-da”: “Model”, “lang-tr”: “Model”} | {“lang-en”: “Square drive”, “lang-nl”: “Aandrijfvierkant”, “lang-de”: “Vierkant- antrieb”, “lang-it”: “Azionamento quadrato”, “lang-es”: “Accionamiento cuadrado”, “lang-fr”: “Entraînement à section carrée”, “lang-da”: “Firkantet drev”, “lang-tr”: “Kare tahrik ucu”} | {“lang-en”: “Max output”, “lang-nl”: “Max uitvoer”, “lang-de”: “Max Ausgang”, “lang-it”: “Max output”, “lang-es”: “Max output”, “lang-fr”: “Production max”, “lang-da”: “Max output”, “lang-tr”: “Maks. giriş”} | {“lang-en”: “Torque Ratio”, “lang-nl”: “Ratio Aanhaalmoment”, “lang-de”: “Drehmoment Verhältnis”, “lang-it”: “Rapporto di coppia”, “lang-es”: “Ratio de par”, “lang-fr”: “Rapport de couple”, “lang-da”: “Momentforhold”, “lang-tr”: “Tork oranı”} | {“lang-en”: “Weight”, “lang-nl”: “Gewicht”, “lang-de”: “Gewicht”, “lang-it”: “Peso”, “lang-es”: “Peso”, “lang-fr”: “Poids”, “lang-da”: “Agirlik”, “lang-tr”: “Agirlik”} | {“lang-en”: “Dim. L”, “lang-nl”: “Afm. L”, “lang-de”: “Maße L”, “lang-it”: “Dim. L”, “lang-es”: “Dim. L”, “lang-fr”: “Dim. L”, “lang-da”: “Dim. L”, “lang-tr”: “Boyut L”} | {“lang-en”: “Dim. W”, “lang-nl”: “Afm. W”, “lang-de”: “Maße W”, “lang-it”: “Dim. W”, “lang-es”: “Dim. W”, “lang-fr”: “Dim. W”, “lang-da”: “Dim. W”, “lang-tr”: “Boyut W”} | {“lang-en”: “Dim. D”, “lang-nl”: “Afm. D”, “lang-de”: “Maße D”, “lang-it”: “Dim. D”, “lang-es”: “Dim. D”, “lang-fr”: “Dim. D”, “lang-da”: “Dim. D”, “lang-tr”: “Boyut D”} | {“lang-en”: “Dim. H”, “lang-nl”: “Afm. H”, “lang-de”: “Maße H”, “lang-it”: “Dim. H”, “lang-es”: “Dim. H”, “lang-fr”: “Dim. H”, “lang-da”: “Dim. H”, “lang-tr”: “Boyut H”} |
|---|---|---|---|---|---|---|---|---|---|
| 🠋 27978 | Hex 50 mm | 1″ | 3.400 Nm | 1:1 | 6,7 Kg | 295 mm | 128 mm | 41 mm | 60 mm |
| 🠋 28540 | Hex 65 mm | 1″ | 5.000 Nm | 1:1.42 | 11,6 Kg | 332 mm | 145 mm | 54 mm | 94 mm |
2. Kies aansluiting
| {"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod.", "lang-da": "Prod.nr.", "lang-tr": "Ürün no."} | {"lang-en": "Suitable for", "lang-nl": "Geschikt voor", "lang-de": "Geeignet für", "lang-it": "Adatto a", "lang-es": "Apta para", "lang-fr": "Convient pour", "lang-da": "velegnet til", "lang-tr": "Uygunluk"} | CX Offset Gearbox |
|---|---|---|
| 11537* | RAD 100 SL, RAD 275 SL, RAD 475 SL, B-RAD SELECT 275, B-RAD SELECT 475, (M)V-RAD 6 | 27978 |
| 16155* | RAD 10 GX, RAD 14 GX, E-RAD BLU 950, B-RAD SELECT 700(-2), B-RAD SELECT 1400(-2), (M)V-RAD 14 | 27978 |
| 26994 | RAD 20 GX, E-RAD BLU 2000, B-RAD SELECT 950-2, B-RAD SELECT 2000(-2), (M)V-RAD 20 | 27978 |
| 13034 | RAD 34 GX, E-RAD BLU 3400, V-RAD 31, MV-RAD 34 | 27978 |
| 27853 | RAD 40 DX, B-RAD SELECT 4000(-2) | 27978 |
| 28532 | RAD 34 GX, E-RAD BLU 3400, V-RAD 31, MV-RAD 34 | 28540 |
| 28531 | RAD 40 DX, B-RAD SELECT 4000(-2) | 28540 |
*Kantel scherm voor optimaal beeld
| {“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”, “lang-da”: “Prod.nr.”, “lang-tr”: “Ürün no.”} | {“lang-en”: “Suitable for”, “lang-nl”: “Geschikt voor”, “lang-de”: “Geeignet für”, “lang-it”: “Adatto a”, “lang-es”: “Apta para”, “lang-fr”: “Convient pour”, “lang-da”: “velegnet til”, “lang-tr”: “Uygunluk”} | CX Offset Gearbox |
|---|---|---|
| 11537* | RAD 100 SL, RAD 275 SL, RAD 475 SL, B-RAD SELECT 275, B-RAD SELECT 475, (M)V-RAD 6 | 27978 |
| 16155* | RAD 10 GX, RAD 14 GX, E-RAD BLU 950, B-RAD SELECT 700(-2), B-RAD SELECT 1400(-2), (M)V-RAD 14 | 27978 |
| 26994 | RAD 20 GX, E-RAD BLU 2000, B-RAD SELECT 950-2, B-RAD SELECT 2000(-2), (M)V-RAD 20 | 27978 |
| 13034 | RAD 34 GX, E-RAD BLU 3400, V-RAD 31, MV-RAD 34 | 27978 |
| 27853 | RAD 40 DX, B-RAD SELECT 4000(-2) | 27978 |
| 28532 | RAD 34 GX, E-RAD BLU 3400, V-RAD 31, MV-RAD 34 | 28540 |
| 28531 | RAD 40 DX, B-RAD SELECT 4000(-2) | 28540 |
* Verloop aandrijfvierkant van 1″ naar ¾”
3. Kies zeskantverkleiner (indien van toepassing)
| {"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod.", "lang-da": "Prod.nr.", "lang-tr": "Ürün no."} | {"lang-en": "From", "lang-nl": "Van", "lang-de": "Von", "lang-it": "Da", "lang-es": "De", "lang-fr": "De", "lang-da": "Fra", "lang-tr": "Nereden"} | {"lang-en": "To", "lang-nl": "Tot", "lang-de": "Zu", "lang-it": "A", "lang-es": "A", "lang-fr": "À", "lang-da": "Til", "lang-tr": "Nereye"} |
|---|---|---|
| 200444 | 50 mm | 30 mm |
| 200443 | 50 mm | 32 mm |
| 200442 | 50 mm | 36 mm |
| 200441 | 50 mm | 41 mm |
| 200440 | 50 mm | 46 mm |
| 200897 | 65 mm | 36 mm |
| 200901 | 65 mm | 41 mm |
| 200902 | 65 mm | 46 mm |
| 200903 | 65 mm | 50 mm |
| 200904 | 65 mm | 55 mm |
| 200905 | 65 mm | 60 mm |
*Kantel scherm voor optimaal beeld
| {“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”, “lang-da”: “Prod.nr.”, “lang-tr”: “Ürün no.”} | {“lang-en”: “From”, “lang-nl”: “Van”, “lang-de”: “Von”, “lang-it”: “Da”, “lang-es”: “De”, “lang-fr”: “De”, “lang-da”: “Fra”, “lang-tr”: “Nereden”} | {“lang-en”: “To”, “lang-nl”: “Tot”, “lang-de”: “Zu”, “lang-it”: “A”, “lang-es”: “A”, “lang-fr”: “À”, “lang-da”: “Til”, “lang-tr”: “Nereye”} |
|---|---|---|
| 200444 | 50 mm | 30 mm |
| 200443 | 50 mm | 32 mm |
| 200442 | 50 mm | 36 mm |
| 200441 | 50 mm | 41 mm |
| 200440 | 50 mm | 46 mm |
| 200897 | 65 mm | 36 mm |
| 200901 | 65 mm | 41 mm |
| 200902 | 65 mm | 46 mm |
| 200903 | 65 mm | 50 mm |
| 200904 | 65 mm | 55 mm |
| 200905 | 65 mm | 60 mm |
HX Offset ringsleutel
- Max. aanhaalmoment: 3.500 Nm
Voor het sluiten en openen van platenwarmtewisselaars is er de RAD HX Offset ringsleutel.
Ook deze cassettesleutel kan met diverse RAD momentsleutels gebruikt worden.
Met de HX Offset ringsleutel is een platenwarmtewisselaar vele malen sneller gemonteerd dan met een hydraulische momentsleutel.
Via de volgende 3 stappen bepaalt u welke uitvoering u nodig heeft:
Stap 1: Kies het type HX Offset ringsleutel.
Stap 2: Kies de reactiearm van de momentsleutel waarmee de HX Offset ringsleutel gebruikt gaat worden.
Stap 3: Kies een zeskantverkleiner om de HX Offset ringsleutel toepasbaar te maken voor verschillende boutmaten.
Alle HX Offset ringsleutels worden geleverd inclusief:
- GX Offset ringsleutel
- Reactiearm
- Weerbestendige opbergkoffer
1. Kies type

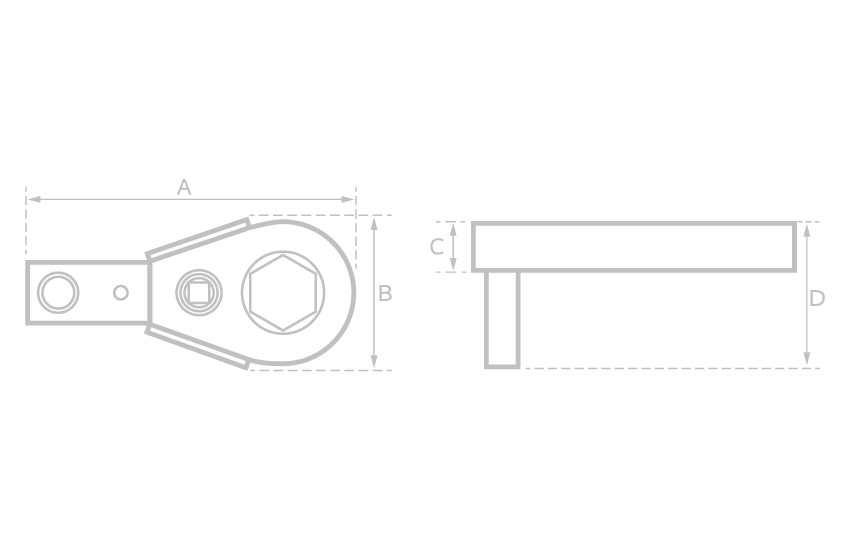

| {"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod.", "lang-da": "Prod.nr.", "lang-tr": "Ürün no."} | {"lang-en": "Model", "lang-nl": "Model", "lang-de": "Modell", "lang-it": "Modello", "lang-es": "Modelo", "lang-fr": "Modèle", "lang-da": "Model", "lang-tr": "Model"} | {"lang-en": "Square drive", "lang-nl": "Aandrijfvierkant", "lang-de": "Vierkant- antrieb", "lang-it": "Azionamento quadrato", "lang-es": "Accionamiento cuadrado", "lang-fr": "Entraînement à section carrée", "lang-da": "Firkantet drev", "lang-tr": "Kare tahrik ucu"} | {"lang-en": "Max input", "lang-nl": "Max invoer", "lang-de": "Max Eingang", "lang-it": "Input max", "lang-es": "Entrada max", "lang-fr": "Entrée max", "lang-da": "Max input", "lang-tr": "Maks. çıkış"} | {"lang-en": "Max output", "lang-nl": "Max uitvoer", "lang-de": "Max Ausgang", "lang-it": "Max output", "lang-es": "Max output", "lang-fr": "Production max", "lang-da": "Max output", "lang-tr": "Maks. giriş"} | {"lang-en": "Torque Ratio", "lang-nl": "Ratio Aanhaalmoment", "lang-de": "Drehmoment Verhältnis", "lang-it": "Rapporto di coppia", "lang-es": "Ratio de par", "lang-fr": "Rapport de couple", "lang-da": "Momentforhold", "lang-tr": "Tork oranı"} | {"lang-en": "Weight", "lang-nl": "Gewicht", "lang-de": "Gewicht", "lang-it": "Peso", "lang-es": "Peso", "lang-fr": "Poids", "lang-da": "Agirlik", "lang-tr": "Agirlik"} | {"lang-en": "Dim. L", "lang-nl": "Afm. L", "lang-de": "Maße L", "lang-it": "Dim. L", "lang-es": "Dim. L", "lang-fr": "Dim. L", "lang-da": "Dim. L", "lang-tr": "Boyut L"} | {"lang-en": "Dim. D", "lang-nl": "Afm. D", "lang-de": "Maße D", "lang-it": "Dim. D", "lang-es": "Dim. D", "lang-fr": "Dim. D", "lang-da": "Dim. D", "lang-tr": "Boyut D"} | {"lang-en": "Dim. W", "lang-nl": "Afm. W", "lang-de": "Maße W", "lang-it": "Dim. W", "lang-es": "Dim. W", "lang-fr": "Dim. W", "lang-da": "Dim. W", "lang-tr": "Boyut W"} | {"lang-en": "Dim. H", "lang-nl": "Afm. H", "lang-de": "Maße H", "lang-it": "Dim. H", "lang-es": "Dim. H", "lang-fr": "Dim. H", "lang-da": "Dim. H", "lang-tr": "Boyut H"} |
|---|---|---|---|---|---|---|---|---|---|---|
| 🠋 24404 | 55 mm | ¾" | 1.900 Nm | 3.500 Nm | 1:1.86 | 6,8 Kg | 410 mm | 175 mm | 42 mm | 266 mm |
| 🠋 22541 | 65 mm | 1" | 1.900 Nm | 3.500 Nm | 1:1.86 | 6,7 Kg | 410 mm | 175 mm | 42 mm | 266 mm |
| 🠋 16550 | 80 mm | 1" | 1.900 Nm | 3.500 Nm | 1:1.86 | 6,6 Kg | 410 mm | 175 mm | 42 mm | 266 mm |
*Kantel scherm voor optimaal beeld
| {“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”, “lang-da”: “Prod.nr.”, “lang-tr”: “Ürün no.”} | {“lang-en”: “Model”, “lang-nl”: “Model”, “lang-de”: “Modell”, “lang-it”: “Modello”, “lang-es”: “Modelo”, “lang-fr”: “Modèle”, “lang-da”: “Model”, “lang-tr”: “Model”} | {“lang-en”: “Square drive”, “lang-nl”: “Aandrijfvierkant”, “lang-de”: “Vierkant- antrieb”, “lang-it”: “Azionamento quadrato”, “lang-es”: “Accionamiento cuadrado”, “lang-fr”: “Entraînement à section carrée”, “lang-da”: “Firkantet drev”, “lang-tr”: “Kare tahrik ucu”} | {“lang-en”: “Max input”, “lang-nl”: “Max invoer”, “lang-de”: “Max Eingang”, “lang-it”: “Input max”, “lang-es”: “Entrada max”, “lang-fr”: “Entrée max”, “lang-da”: “Max input”, “lang-tr”: “Maks. çıkış”} | {“lang-en”: “Max output”, “lang-nl”: “Max uitvoer”, “lang-de”: “Max Ausgang”, “lang-it”: “Max output”, “lang-es”: “Max output”, “lang-fr”: “Production max”, “lang-da”: “Max output”, “lang-tr”: “Maks. giriş”} | {“lang-en”: “Torque Ratio”, “lang-nl”: “Ratio Aanhaalmoment”, “lang-de”: “Drehmoment Verhältnis”, “lang-it”: “Rapporto di coppia”, “lang-es”: “Ratio de par”, “lang-fr”: “Rapport de couple”, “lang-da”: “Momentforhold”, “lang-tr”: “Tork oranı”} | {“lang-en”: “Weight”, “lang-nl”: “Gewicht”, “lang-de”: “Gewicht”, “lang-it”: “Peso”, “lang-es”: “Peso”, “lang-fr”: “Poids”, “lang-da”: “Agirlik”, “lang-tr”: “Agirlik”} | {“lang-en”: “Dim. L”, “lang-nl”: “Afm. L”, “lang-de”: “Maße L”, “lang-it”: “Dim. L”, “lang-es”: “Dim. L”, “lang-fr”: “Dim. L”, “lang-da”: “Dim. L”, “lang-tr”: “Boyut L”} | {“lang-en”: “Dim. D”, “lang-nl”: “Afm. D”, “lang-de”: “Maße D”, “lang-it”: “Dim. D”, “lang-es”: “Dim. D”, “lang-fr”: “Dim. D”, “lang-da”: “Dim. D”, “lang-tr”: “Boyut D”} | {“lang-en”: “Dim. W”, “lang-nl”: “Afm. W”, “lang-de”: “Maße W”, “lang-it”: “Dim. W”, “lang-es”: “Dim. W”, “lang-fr”: “Dim. W”, “lang-da”: “Dim. W”, “lang-tr”: “Boyut W”} | {“lang-en”: “Dim. H”, “lang-nl”: “Afm. H”, “lang-de”: “Maße H”, “lang-it”: “Dim. H”, “lang-es”: “Dim. H”, “lang-fr”: “Dim. H”, “lang-da”: “Dim. H”, “lang-tr”: “Boyut H”} |
|---|---|---|---|---|---|---|---|---|---|---|
| 🠋 24404 | 55 mm | ¾” | 1.900 Nm | 3.500 Nm | 1:1.86 | 6,8 Kg | 410 mm | 175 mm | 42 mm | 266 mm |
| 🠋 22541 | 65 mm | 1″ | 1.900 Nm | 3.500 Nm | 1:1.86 | 6,7 Kg | 410 mm | 175 mm | 42 mm | 266 mm |
| 🠋 16550 | 80 mm | 1″ | 1.900 Nm | 3.500 Nm | 1:1.86 | 6,6 Kg | 410 mm | 175 mm | 42 mm | 266 mm |
2. Kies reactiearm
| {"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod.", "lang-da": "Prod.nr.", "lang-tr": "Ürün no."} | {"lang-en": "Suitable for", "lang-nl": "Geschikt voor", "lang-de": "Geeignet für", "lang-it": "Adatto a", "lang-es": "Apta para", "lang-fr": "Convient pour", "lang-da": "velegnet til", "lang-tr": "Uygunluk"} | HX Offset Gearbox |
|---|---|---|
| 16920 | 10 GX, 14 GX, (M)V-RAD 14, (M)B-RAD SELECT 700, (M)B-RAD 1400(-2) | 24404 / 22541 / 16550 |
| 23120 | B-RAD SELECT 950-2, 20 DX, (M)B-RAD 2000(-2) | 24404 / 22541 / 16550 |
| 24611 | 34 GX | 24404 / 22541 / 16550 |
*Kantel scherm voor optimaal beeld
| {“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”, “lang-da”: “Prod.nr.”, “lang-tr”: “Ürün no.”} | {“lang-en”: “Suitable for”, “lang-nl”: “Geschikt voor”, “lang-de”: “Geeignet für”, “lang-it”: “Adatto a”, “lang-es”: “Apta para”, “lang-fr”: “Convient pour”, “lang-da”: “velegnet til”, “lang-tr”: “Uygunluk”} | HX Offset Gearbox |
|---|---|---|
| 16920 | 10 GX, 14 GX, (M)V-RAD 14, (M)B-RAD SELECT 700, (M)B-RAD 1400(-2) | 24404 / 22541 / 16550 |
| 23120 | B-RAD SELECT 950-2, 20 DX, (M)B-RAD 2000(-2) | 24404 / 22541 / 16550 |
| 24611 | 34 GX | 24404 / 22541 / 16550 |
3. Kies zeskantverkleiner (indien van toepassing)
| {"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod.", "lang-da": "Prod.nr.", "lang-tr": "Ürün no."} | {"lang-en": "From", "lang-nl": "Van", "lang-de": "Von", "lang-it": "Da", "lang-es": "De", "lang-fr": "De", "lang-da": "Fra", "lang-tr": "Nereden"} | {"lang-en": "To", "lang-nl": "Tot", "lang-de": "Zu", "lang-it": "A", "lang-es": "A", "lang-fr": "À", "lang-da": "Til", "lang-tr": "Nereye"} |
|---|---|---|
| 200906 | 55 mm | 36 mm |
| 200837 | 55 mm | 46 mm |
| 200897 | 65 mm | 36 mm |
| 200901 | 65 mm | 41 mm |
| 200902 | 65 mm | 46 mm |
| 200903 | 65 mm | 50 mm |
| 200904 | 65 mm | 55 mm |
| 200905 | 65 mm | 60 mm |
| 200819 | 80 mm | 24 mm |
| 200862 | 80 mm | 30 mm |
| 200863 | 80 mm | 36 mm |
| 200835 | 80 mm | 46 mm |
| 200858 | 80 mm | 50 mm |
| 200830 | 80 mm | 55 mm |
| 200831 | 80 mm | 60 mm |
| 200832 | 80 mm | 65 mm |
| 200857 | 80 mm | 70 mm |
| 200834 | 80 mm | 75 mm |
*Kantel scherm voor optimaal beeld
| {“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”, “lang-da”: “Prod.nr.”, “lang-tr”: “Ürün no.”} | {“lang-en”: “From”, “lang-nl”: “Van”, “lang-de”: “Von”, “lang-it”: “Da”, “lang-es”: “De”, “lang-fr”: “De”, “lang-da”: “Fra”, “lang-tr”: “Nereden”} | {“lang-en”: “To”, “lang-nl”: “Tot”, “lang-de”: “Zu”, “lang-it”: “A”, “lang-es”: “A”, “lang-fr”: “À”, “lang-da”: “Til”, “lang-tr”: “Nereye”} |
|---|---|---|
| 200906 | 55 mm | 36 mm |
| 200837 | 55 mm | 46 mm |
| 200897 | 65 mm | 36 mm |
| 200901 | 65 mm | 41 mm |
| 200902 | 65 mm | 46 mm |
| 200903 | 65 mm | 50 mm |
| 200904 | 65 mm | 55 mm |
| 200905 | 65 mm | 60 mm |
| 200819 | 80 mm | 24 mm |
| 200862 | 80 mm | 30 mm |
| 200863 | 80 mm | 36 mm |
| 200835 | 80 mm | 46 mm |
| 200858 | 80 mm | 50 mm |
| 200830 | 80 mm | 55 mm |
| 200831 | 80 mm | 60 mm |
| 200832 | 80 mm | 65 mm |
| 200857 | 80 mm | 70 mm |
| 200834 | 80 mm | 75 mm |
Bekijk ook de volgende producten
Digitale hand momentsleutels
Liever met de hand op het juiste moment zetten? Bekijk onze digitale hand momentsleutels van TrackWrench®.
Onze digitale hand momentsleutels van TrackWrench® bieden precisie en controle voor het op moment zetten van uw werkstukken. Met een eenvoudig te bedienen digitale display, kunt u de juiste koppelinstellingen selecteren en de sleutel aanpassen aan de specifieke eisen van uw project.
Spindelsleutels
Spindelsleutels van Modec bieden een efficiënte oplossing voor het aandrijven van spindels en handwielen in plaats van bouten. Onze momentsleutels zijn speciaal ontworpen voor deze toepassing en garanderen een soepele en precieze bediening. Bekijk onze producten voor de juiste oplossing voor uw toepassing.
Offset Ringsleutel
Met de Offset Ringsleutel van RAD Torque Systems kunt u eenvoudig moeren vastzetten in krappe ruimtes. Ons innovatieve ontwerp biedt een efficiënte oplossing voor het vastzetten van moeren en bouten op moeilijk bereikbare plaatsen.
